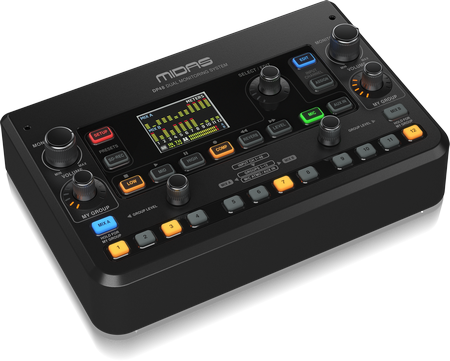

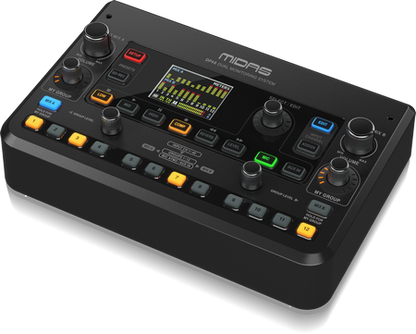

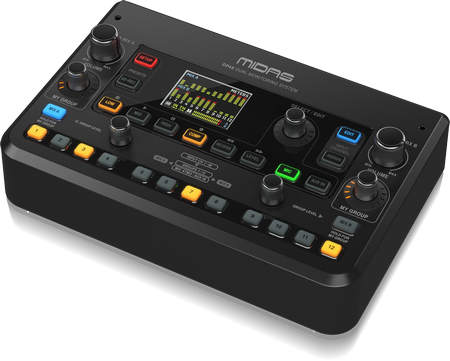

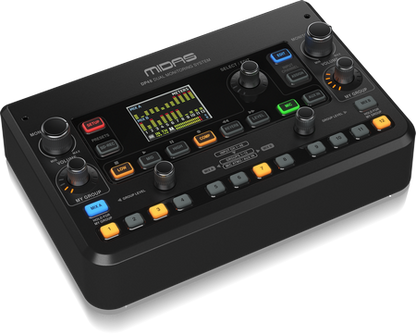

Midas DP48 Dual 48 Channel Personal Monitor Mixer

The Midas DP48 is a dual 48 channel personal monitor mixer that allows 2 performers to fully control their monitor mixes and hear exactly what they want and even record and playback rehearsals and performances. With a simple and intuitive interface and the ability to connect to any AES50-equipped device, the DP48 can create a complete monitoring system perfect for use in the studio or on stage.

The DP48 gives performers complete control over their monitor mix with 12 stereo groups for quickly creating and balancing mixes. All 48 channels of the DP48 can be mixed within these 12 groups and can handle any kind of monitor set up. Vocalists, for example can place the vocal channel in Group 1 while the drums, bass and guitar channels can be placed in Groups 2,3 and 4 respectively. Drummers who may be more particular can create more complex mixes with the DP48; separately mix their kick, snare and hi hat in Groups 1-3 with the two overhead mics panned left and right in Group 4.

The dual mix feature even allows two users to be connected to one DP48 each with their own separate stereo group mix. There are three dedicated controls for each of the Mix A and B outputs, providing independent adjustments for the respective Output Volume, the selected Group Level and for the assignable My Group Level. Both Main Mixes feature separate EQ, Reverb Level and Limiter settings—especially useful when both talents are using different in-ear or over-ear headphones.

Features:

• Dual 48 channel personal monitor mixer compatible with Midas personal monitoring system hubs
• 12 stereo groups enable rapid creation and balancing of personal mixes from fully configurable stem groups
• Dual mix feature allows independent control of two complete monitor mixes
• Integrated SD card interface for stereo recording and playback of rehearsal sessions and performances
• Built-in stereo ambience microphone provides on-stage sound feed to remove sense of isolation with in-ear monitors
• Studio-quality reverb adds spatial ambience to personal in-ear mixes, independent from main console

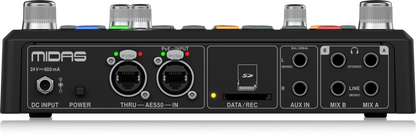

• Remotely powered via direct AES50 connection from Midas hubs featuring Power over Ethernet (PoE)

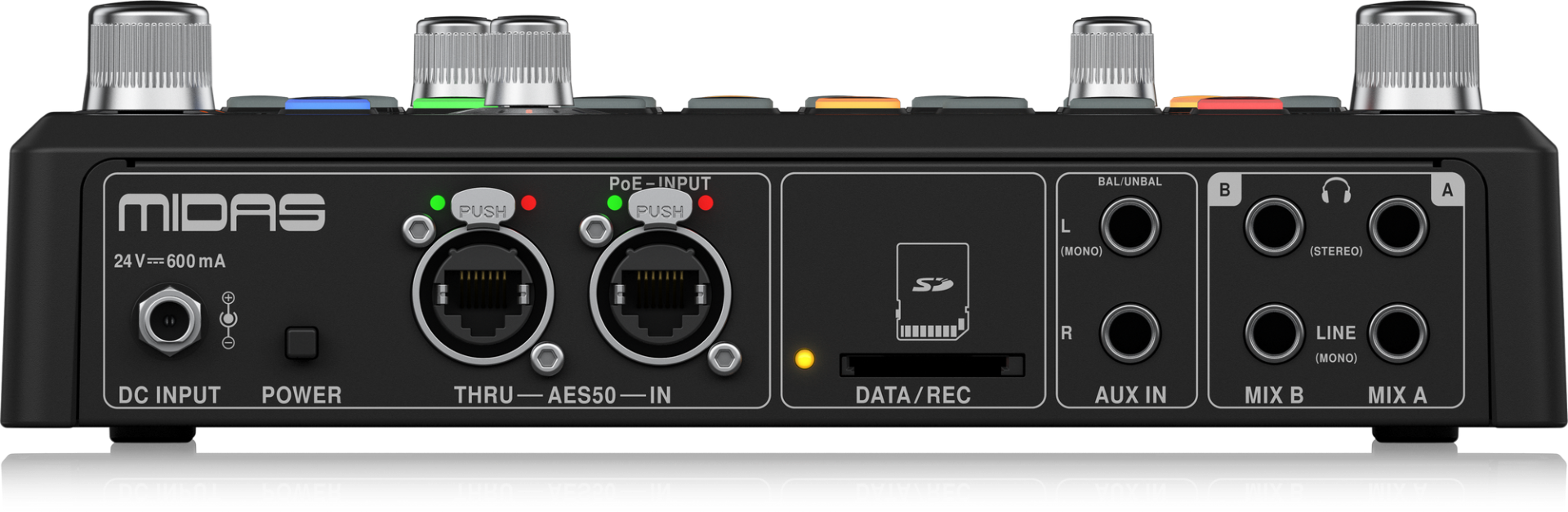

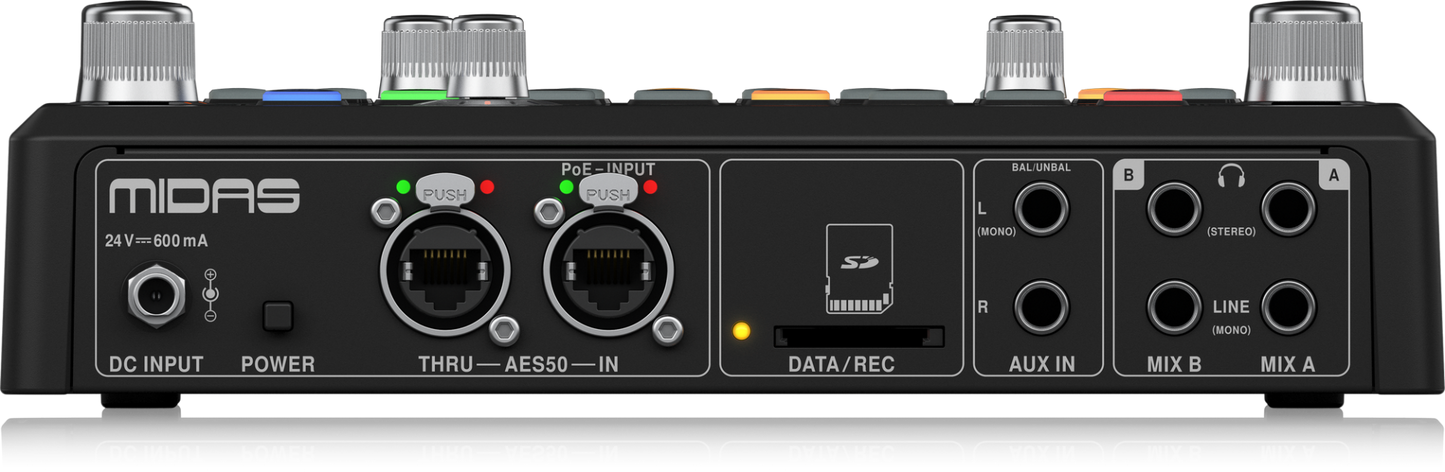

• Separate DC power supply allows daisy-chaining of DP48 personal monitor mixers and use without any PoE hub
• Compatible with any 44.1/48 kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes
• AES50 return channels allow personal mixes to be sent back to the console or hub for connection to wireless IEM transmitters
• Remote operation up to 100 m via screened CAT5/5e cable
• Remote setup and control of DP48 personal monitor mixer via Midas hubs
• Full remote control of another DP48 when both connected to the same hub or used in daisy chain configuration

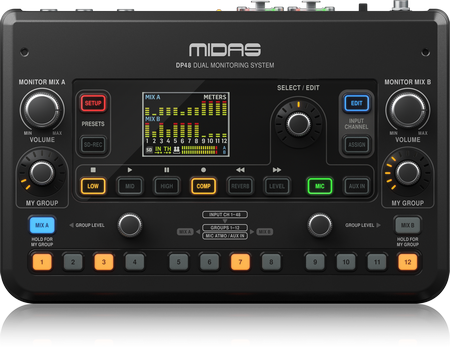

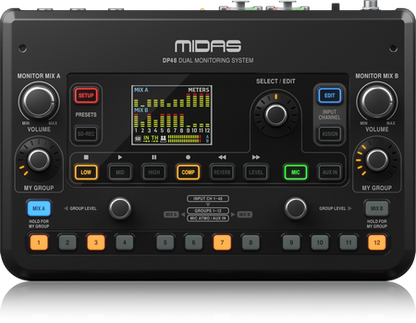

• High-contrast 2.4" colour TFT display screen provides clear overview of mix parameters, meters and group assignments
• Analogue stereo auxiliary input for local click track
• High power headphone output for use in all stage monitoring environments
• Fully adjustable limiter allows for safe monitoring levels within sound exposure limits
• Mounts securely on microphone stand with DP48MB adaptor (not included)
