Capture the performance on a whole new level.

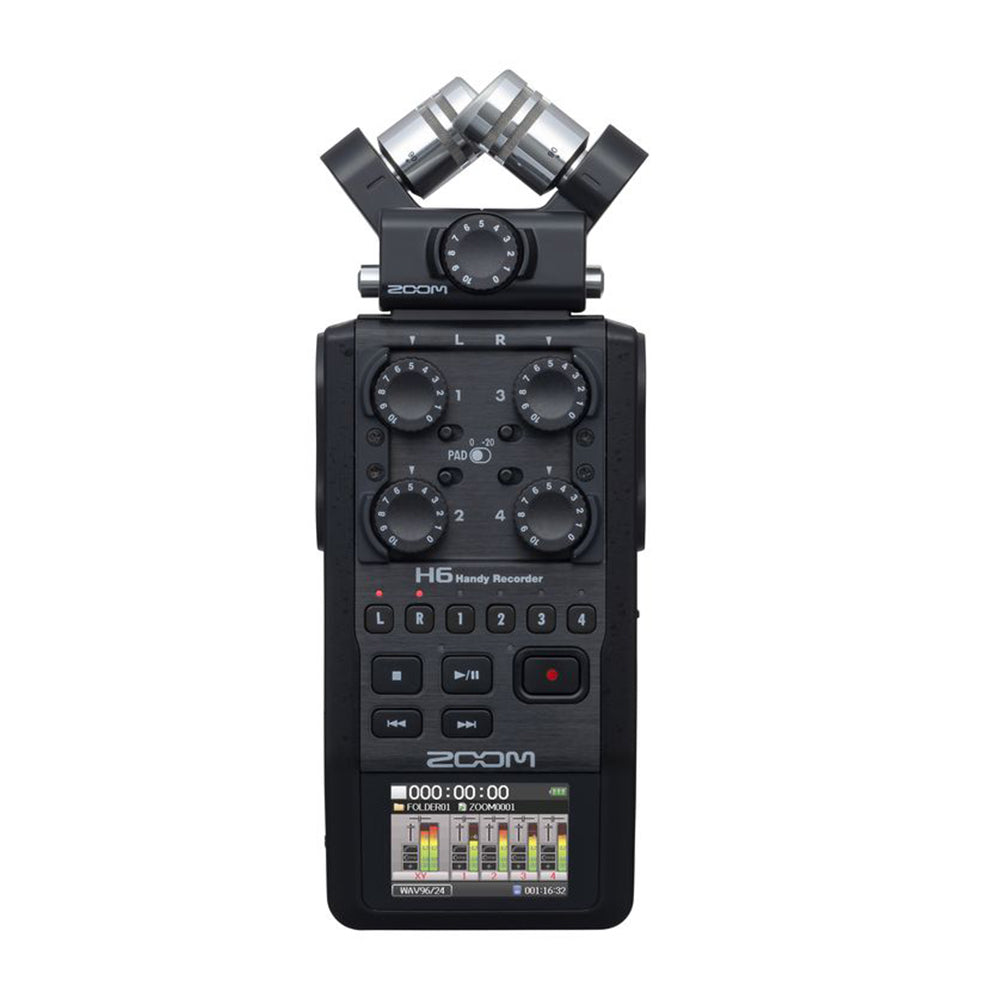

Do more than just record the show: Document the experience. Use the X/Y capsule to capture the overall sound in stereo, then use the other four inputs for a direct feed from the mixing board, or for external spot mics to pick up specific instruments and the room sound. With the H6, you can relive that great performance night after night.
Get the sound that completes the scene.
Whether you slide it onto your camera strap or attach it directly to your DSLR with our Hot Shoe mount, the H6 is the essential audio recorder for location videography. Its supplied MSH-6 mic capsule and onboard MS decoding, plus the ability to record up to 6 tracks simultaneously, gives you plenty of options in post-production.
Deliver the full story, down to the last detail.
Extend your range with the optional SGH-6 Shotgun mic. Get every word of that headline-making interview. Capture breaking news with maximum impact, then mix and prepare the audio for broadcast while still in the field. With the H6, you can do onsite reporting that really resonates.
Make every chord, every note, every riff really sing.
Plug in the optional EXH-6 Dual XLR/TRS capsule and your H6 becomes a personal 6-track studio with six discrete line- or mic-level inputs, each with its own volume control and pad. Record and overdub up to 99 takes in high-resolution audio, then mix down to a stereo MP3 for posting to your favorite website. With the H6, the road from great idea to perfect track just got a lot shorter.
AS ADAPTABLE AS A CHAMELEON.
Life is about options … and so is recording.
Versatility: It’s what the groundbreaking H6 is all about. Simply clip on the interchangeable capsule which best fits your needs — it’s as easy as changing the lens on a camera — and the H6 instantly adapts, allowing you to record in virtually every environment.
XYH-6 X/Y CAPSULE
A little X, a little Y, a whole lotta stereo.
The X/Y miking technique is optimal when you want to cover a wide area and still capture sound sources in the center with clarity and definition, making it great for all types of live stereo recording.
The capsule adds two matched high-quality unidirectional microphones to your H6 or H5. This kind of microphone is most sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides; in technical terms, they are said to utilize a cardioid polar pattern.
Playing back stereo X/Y tracks in mono results in a fuller sound than you would get with one microphone, but if mono compatibility is critical (for example, in television production), the Mid-Side (MS) mic technique can be a better choice.
MSH-6 MS CAPSULE
Mid-side mic magic.
MS (“Mid-Side”) recording: an incredible technique that allows you to actually adjust the width of the stereo image after it has been recorded, making it especially useful for film, video and television projects. Sound like magic?
Although the MSH-6 MS capsule appears to be just one microphone, it actually contains two mic elements, positioned directly on top of one another. One of the microphones inside the MSH-6 is unidirectional (that is, it is mostly sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides) while the other is bi-directional (that is, it is mostly sensitive to signals coming from directly in front and directly behind, and less sensitive to signal coming from the sides).
The basic concept behind MS recording is that the Mid microphone picks up signal coming from the center, while the Side microphone creates ambience and directionality by adding or subtracting information from either side.
The Mid-Side technique works well whenever you need a variable amount of room sound. It can also be used for studio recording, and its convenience and flexibility make it a good option for rehearsal and live concert recording as well. Another benefit is that it provides total mono compatibility, making it an excellent choice for stereo recordings that may eventually be played back in mono, such as TV broadcasts.
XYH-5 X/Y CAPSULE
Louder. Closer. Cleaner.
X/Y stereo recording allows you to cover a wide area yet still capture a strong center image. The XYH-5 X/Y microphone capsule provided with the H5 features two matched unidirectional condenser microphones set at a 90 degree angle and housed within an advanced shockmount to minimize vibration and handling noise, making it ideal for location videography and live broadcast/podcast applications. The design of the XYH-5 also allows it to handle extremely loud sounds, making it perfect for use at live rock concerts and for electronic newsgathering. The XYH-5 can also be used with the H6.
SGH-6 SHOTGUN CAPSULE
The SGH-6 Shotgun capsule adds a professional-quality hyperdirectional (that is, highly directional) microphone turning your H6 or H5 into the perfect audio recorder for anyone working in film, video or live theater, or for ENG (electronic news gathering) applications.
A “shotgun” is a long, cylindrical microphone which excels at picking up sounds in front of it while rejecting sounds to the sides and rear. Shotgun microphones are often used when you cannot position a microphone directly in front of a sound source. For example, if someone is speaking in front of a video camera and you don’t want them to hold an interview microphone up to their mouth, the solution is to use an off-screen shotgun mic.
Shotgun mics have a narrower focus (sometimes referred to as more "reach") than an average microphone. However, shotgun mics are not the audio equivalent of a photographic telephoto lens. Even though they do an above-average job of picking up sounds that originate from a short distance away, they always sound better when they’re physically close to the sound source. That’s why whenever you use the SGH-6 shotgun capsule, you should always strive to get as close as possible to the sound source, which often means hovering right at the edge of the frame of a shot.
EXH-6 DUAL XLR/TRS COMBO CAPSULE
Need more inputs?
If you need more inputs, simply plug in the EXH-6 Dual XLR/TRS Combo capsule. It allows you to connect two additional discrete channels for external microphones, instruments, mixers or portable music players.
Both EXH-6 inputs are combo jacks that accept either XLR or ¼" balanced (TRS) or unbalanced (TS) connectors. They can handle both mic- and line-level signals, which means that you can connect either microphones or line-level devices like mixers, portable music players, electronic keyboards, or electric guitars or basses with active electronics (passive electric guitars or basses can also be connected with the use of a mixer or effects device). Internal switching contacts automatically detect the circuit of choice.
Each EXH-6 input offers a dedicated analog gain control knob as well as a -20dB pad that allows you to prevent distortion even when high-level signals are introduced; in fact, with the use of the Pad switch, the H6 can input 30dB louder signal and 14dB softer signal than any other Handy Recorder model. In addition, a built-in instrumentation amp allows signals to be transmitted with minimal noise even when long cables are used.
