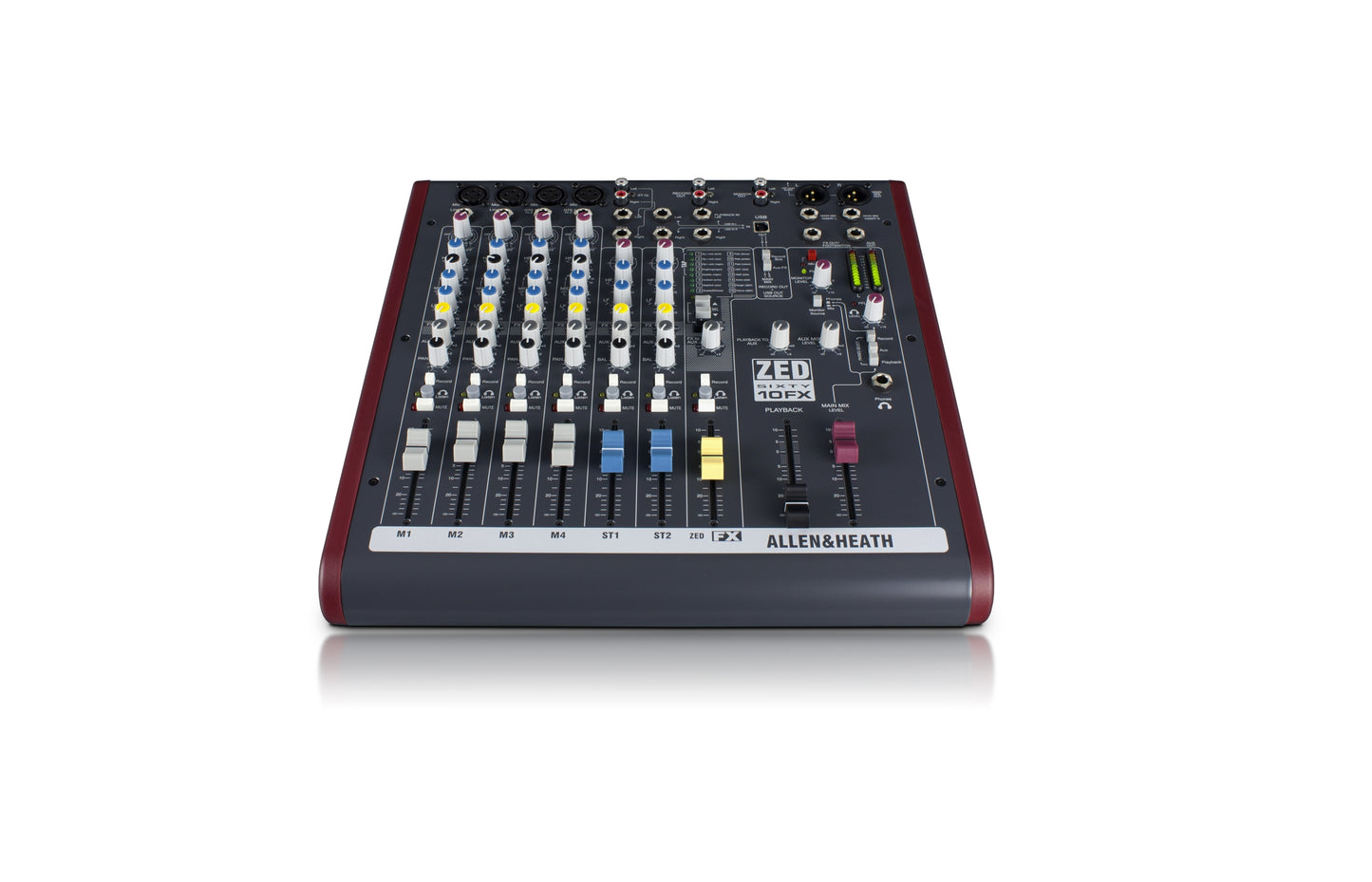

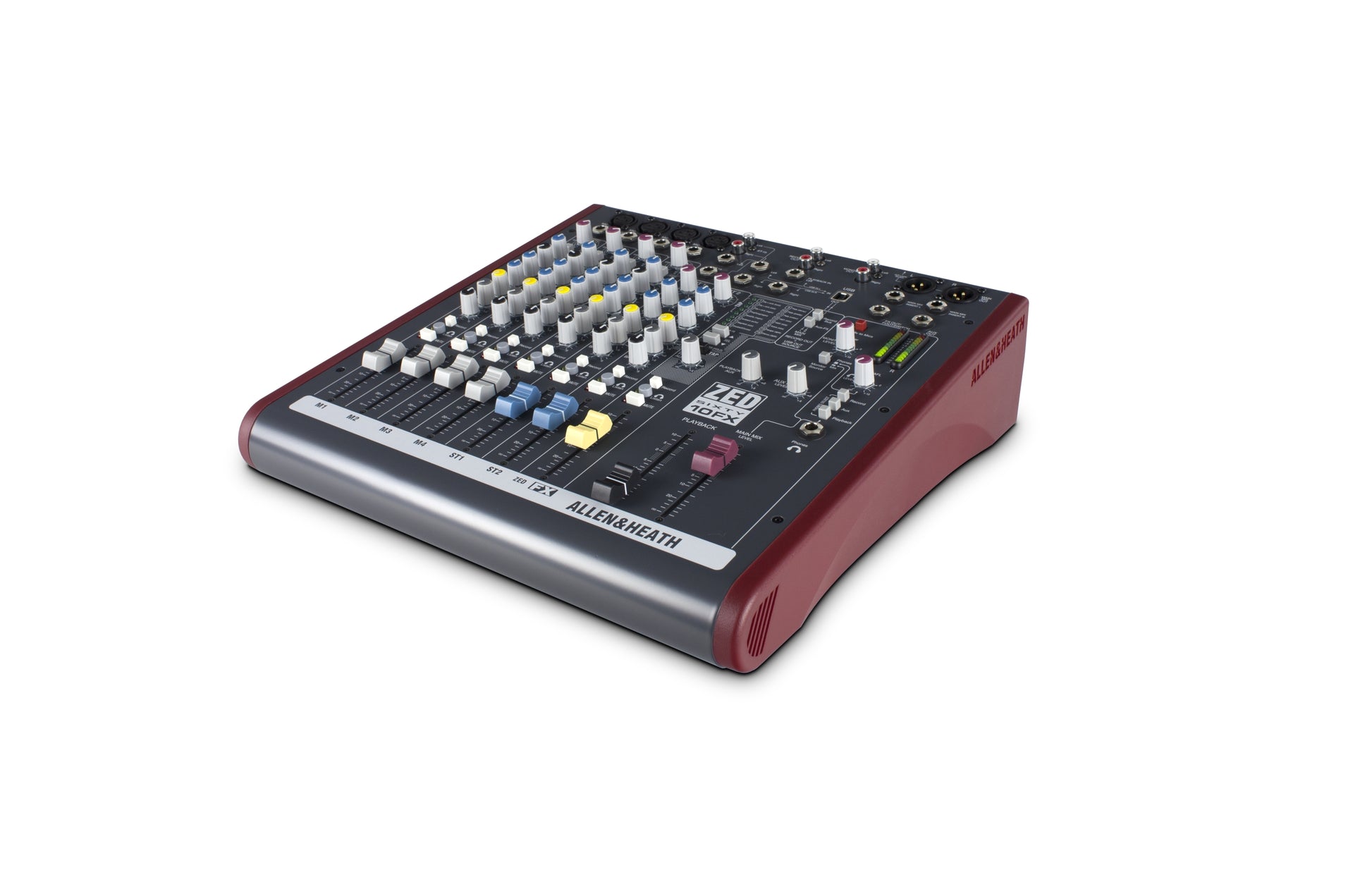

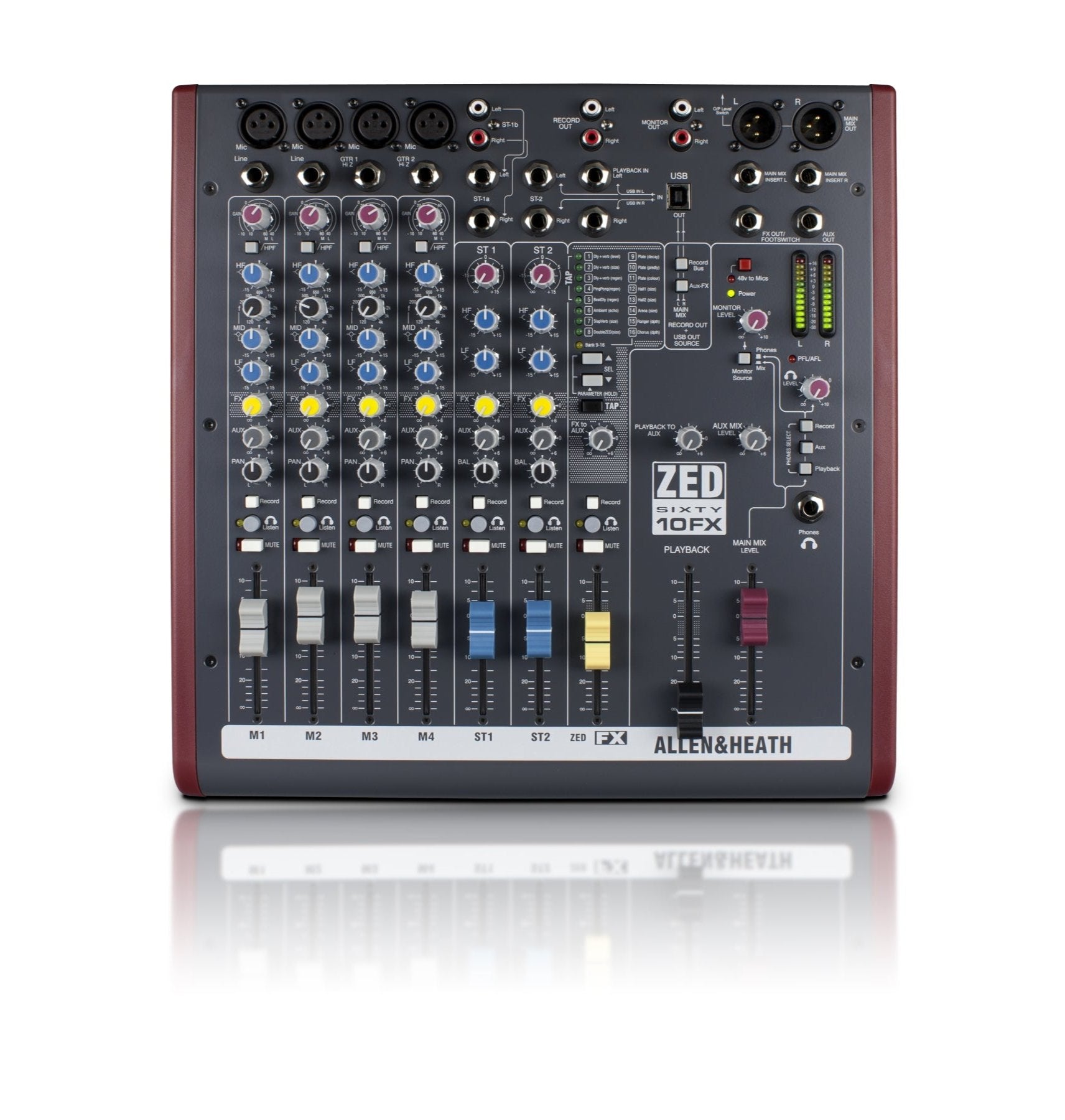

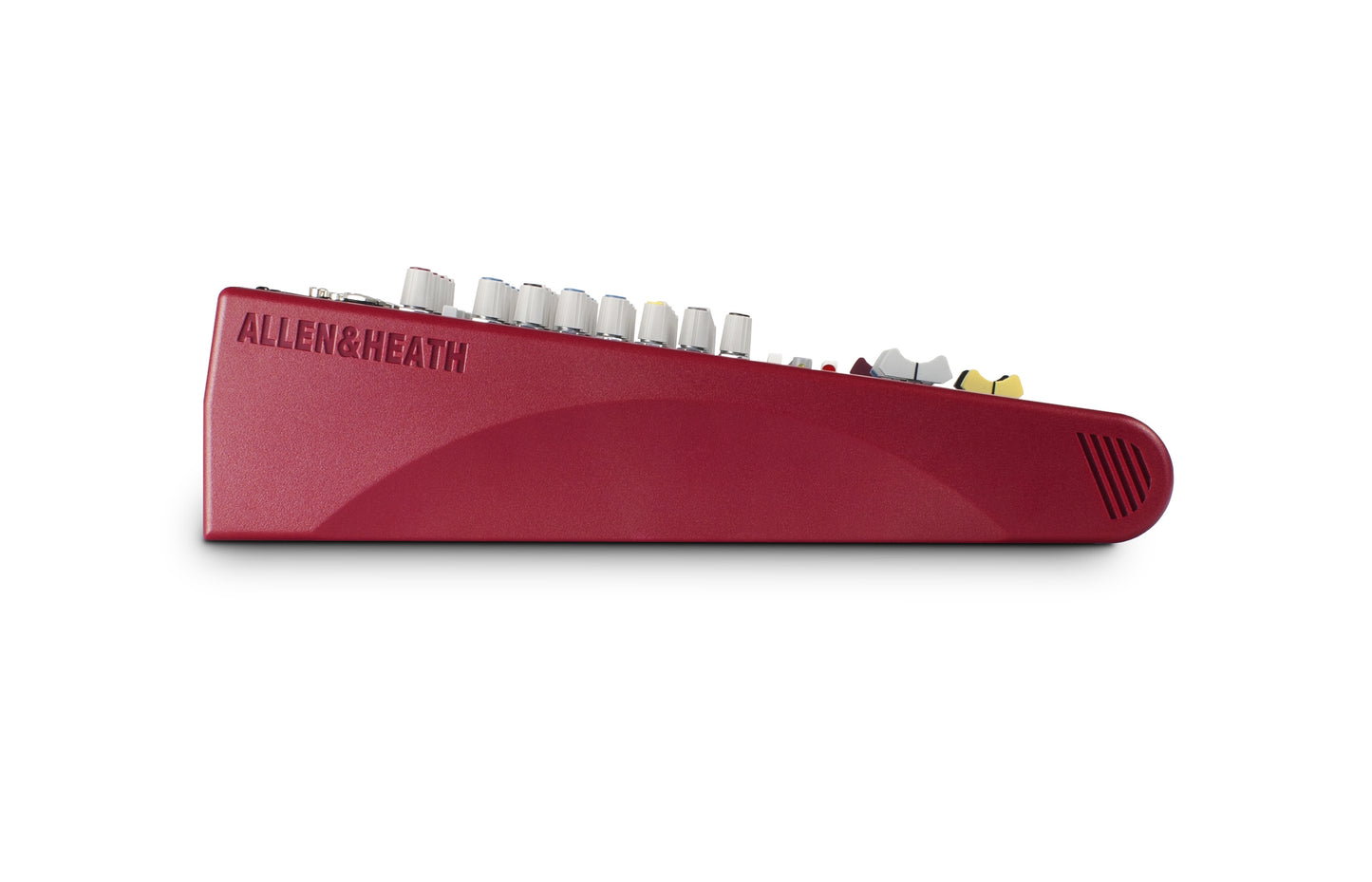

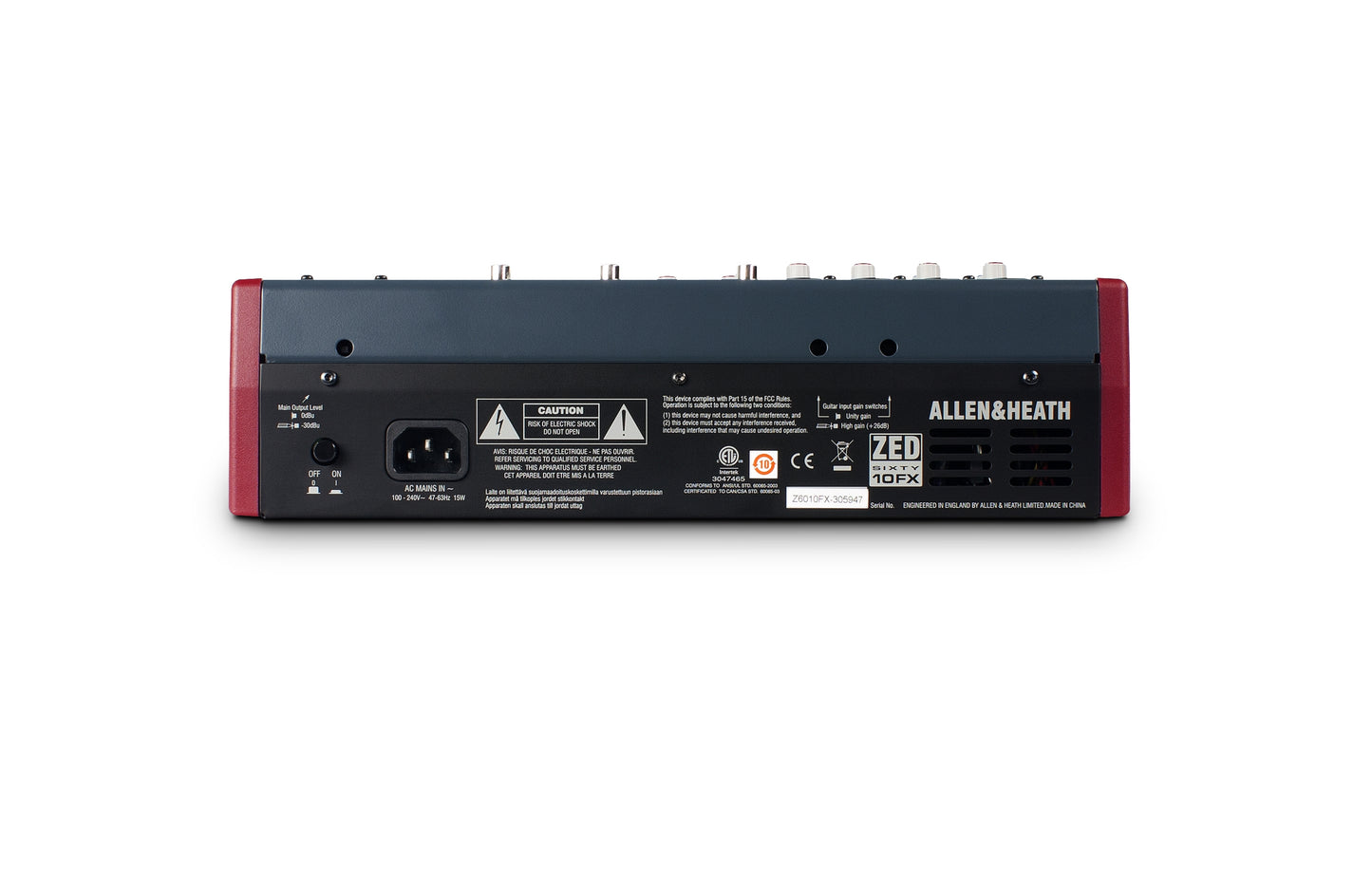

Allen & Heath ZED60-10FX 10-Channel Analog Mixer with Effects

Live or in the studio, ZED60-10FX is an ultra-portable mixer for solo artists and small bands.

The new ZED60-10FX is based on the popular ZED-10FX, adding premium quality 60mm faders for that intuitive, tactile mixing experience.

This mixer is a guitarist’s dream. Two of the 4 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.

ZED60-10FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.

Key Features:

• 4 mic/line inputs, 2 with Class A FET high impedance
• 60mm professional quality faders
• Responsive 3-band, swept mid EQ with MusiQ
• Configurable USB stereo audio in/out
• 1 pre-fade Aux send
• 1 FX send
• 2 stereo inputs
• Separate 2-track record outputs
• 16 Internal Effects
• XLR main stereo outputs with inserts
• Comprehensive monitoring
• 48V microphone phantom power
• DI level switching with Gain Boost
• Neutrik XLRs and 1/4 inch jacks
