- Four input channels, Ch. 1 and 2 have dual L/R RCA inputs, with Ch. 3 you
- have a choice of one 1/4” or dual L/R RCA inputs and Ch 4 has a 1/4”
- unbalanced input.

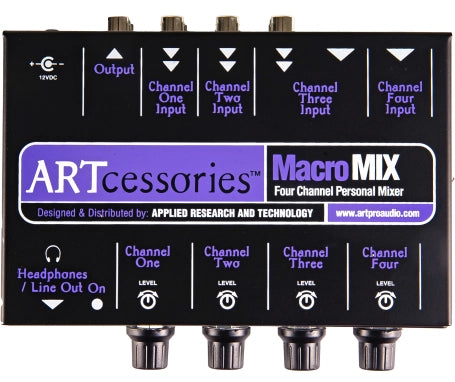

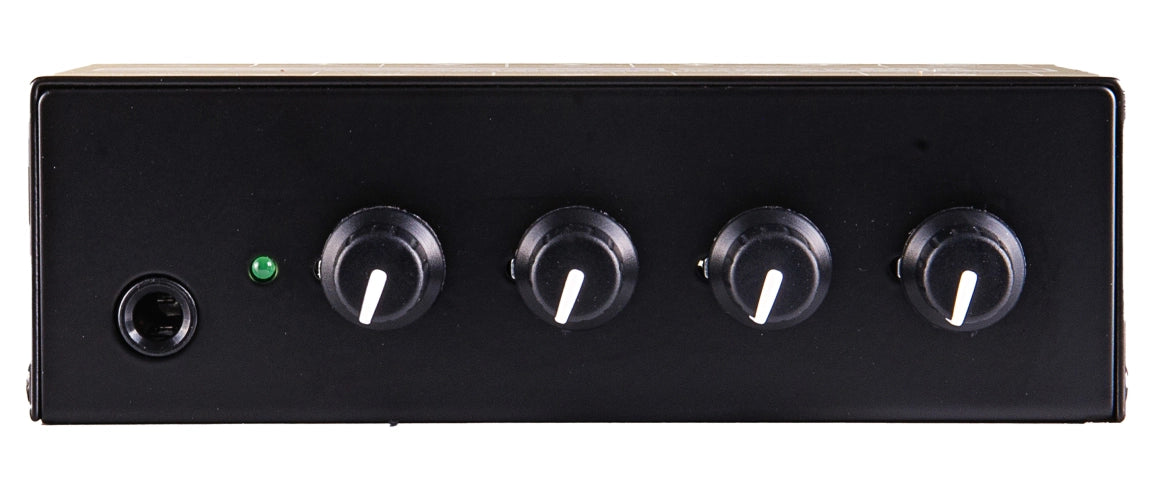

- Four Level controls, one for each channel

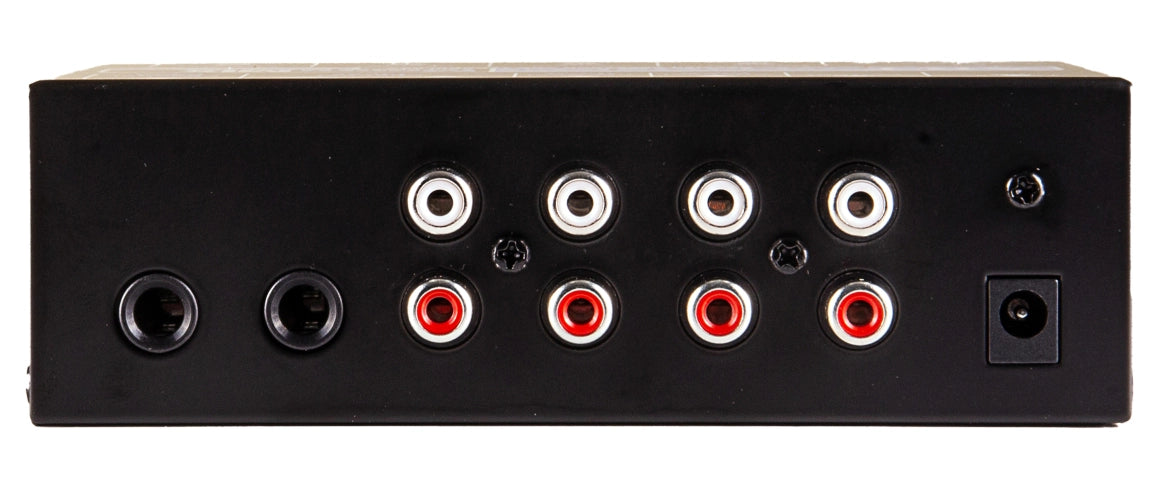

- Dual L/R RCA Output connectors
- 1/4” Line Out/Stereo Headphone output jack
- Active preamplification and mixing circuitry
- Input Impedance: 10K ohms unbalanced (all inputs)
- Ch. 1/2/3 and 4 Input Gains: 32dB/26dB/26dB and 26dB
- S/N Ratio: >90dB
- THD: <0.008%
- IMD (SMPTE): <0.008%
- Power: 12V DC (Adapter included)
- Dimensions: 5.625 x 3.75 x 1.75 inches (143mm x 92mm x 45mm)
- Weight: 2 lbs (0.91kg)
