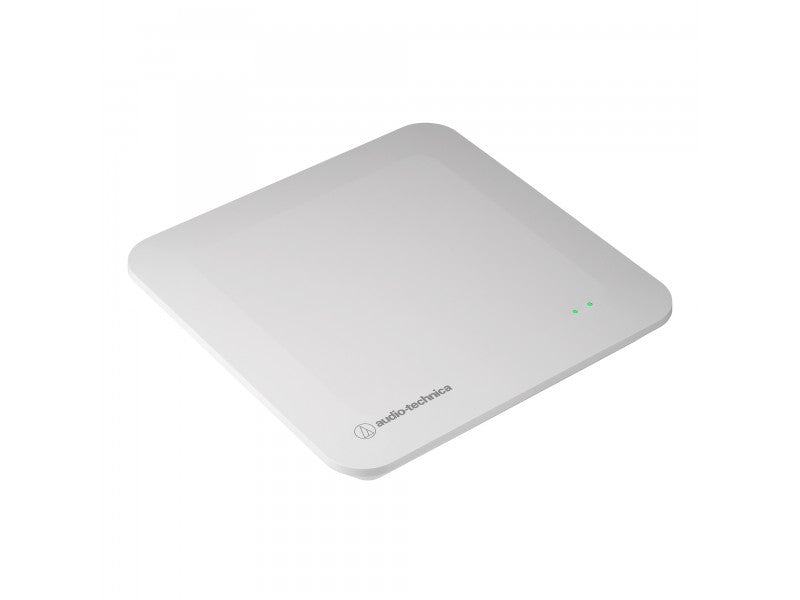

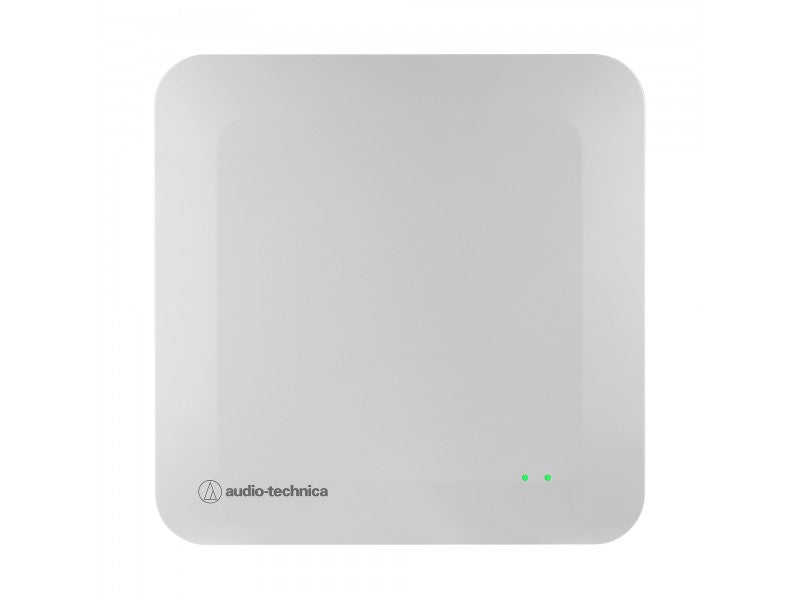

Audio Technica ESW-R4180DAN 8-channel Wireless Conference Receiver Unit with Dante

• Low-profile white housing that blends in with interior décor
• Onboard LEDs for verifying connection status at a glance
• Included mounting brackets adjust to fit a variety of mounting methods
• Lightweight design for secure installation
• A standard Cat 5e cable supplies 8-channel audio output and Dante support

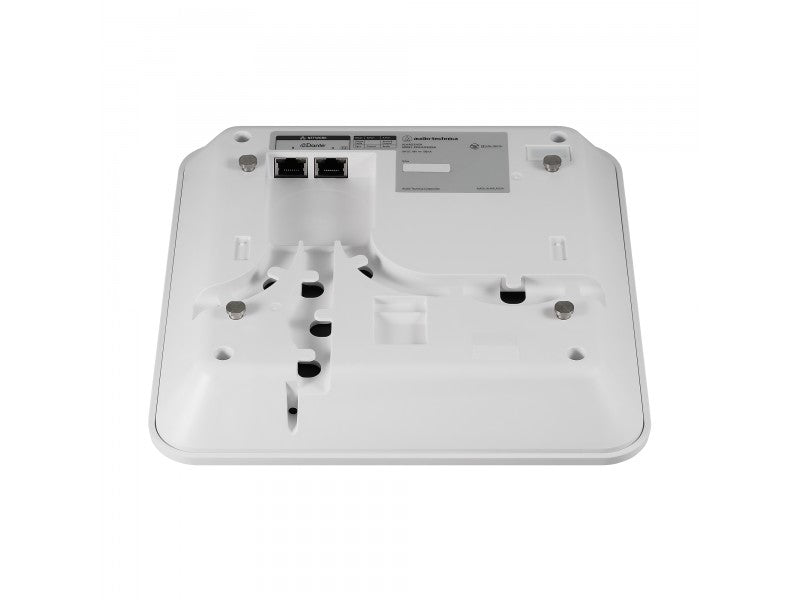

• Dual network ports for Dante and IP control separation
• Mixed output support for situations with limited input channels
• High-pass filtering for each channel
• Monitoring of transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager

The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s Engineered Sound Wireless Systems is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.  

Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the receiver and Dante audio output capabilities. Wiring is as simple as connecting a single Cat 5e cable to a PoE switch. This helps streamline the installation process, with no need to worry about having to install multiple antennas. System integrators are able to configure detailed settings to meet a wide variety of end-user needs.  

Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption support comes standard, providing superior security and reliable operation.

Engineered Sound Wireless Features: 

• Automatic DECT-based frequency management
• Up to 96 simultaneously usable channels
• Simple setup with Cat 5e cable and 8-channel audio output and Dante support
• Standard mode (48 channels) for minimized latency, and HD mode (96 channels) for maximizing the number of channels
• Selectable RF power output to optimize coverage area
• Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
• Presets for customizing transmitters for multiple applications
• Roaming function for connecting transmitters to multiple receivers within preconfigured rooms/areas
• Long-lasting internal lithium-ion batteries for all-day transmitter use
• Optimized sound quality for intelligible, crystal-clear audio
• Adjustable high-pass, transmitter gain, and volume for each receiver channel
• AES256 encryption support for superior security
• Compatible with Syslog protocol
• Ability to configure, monitor, and save device settings as projects in Wireless Manager
• DECT RF scan for identifying the number of available DECT wireless channels via A-T’s Wireless Manager software
