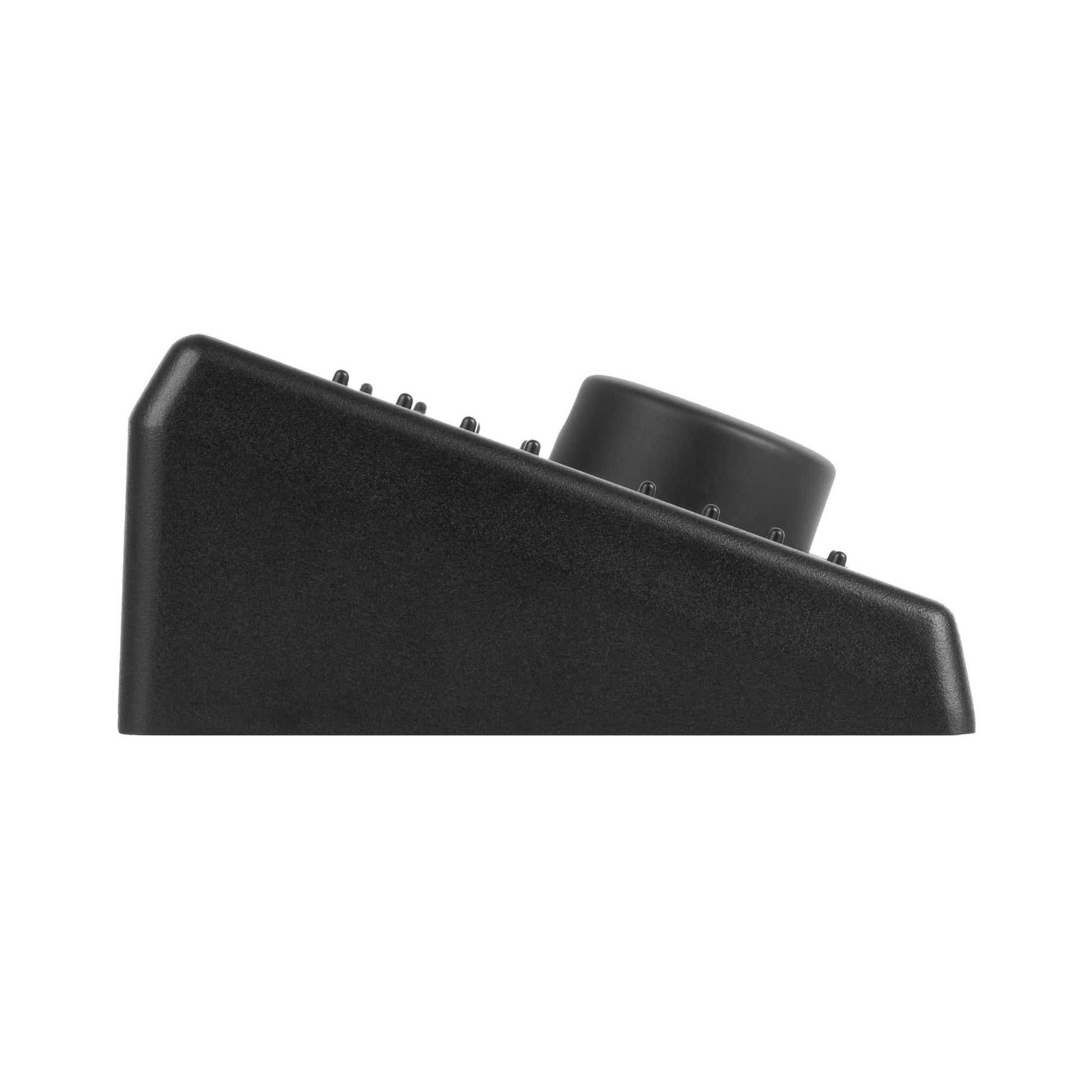

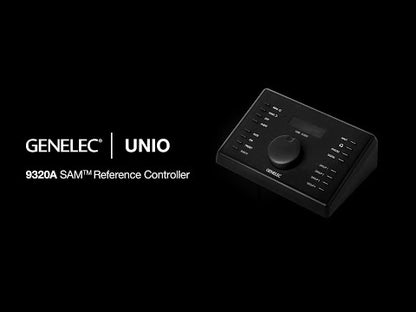

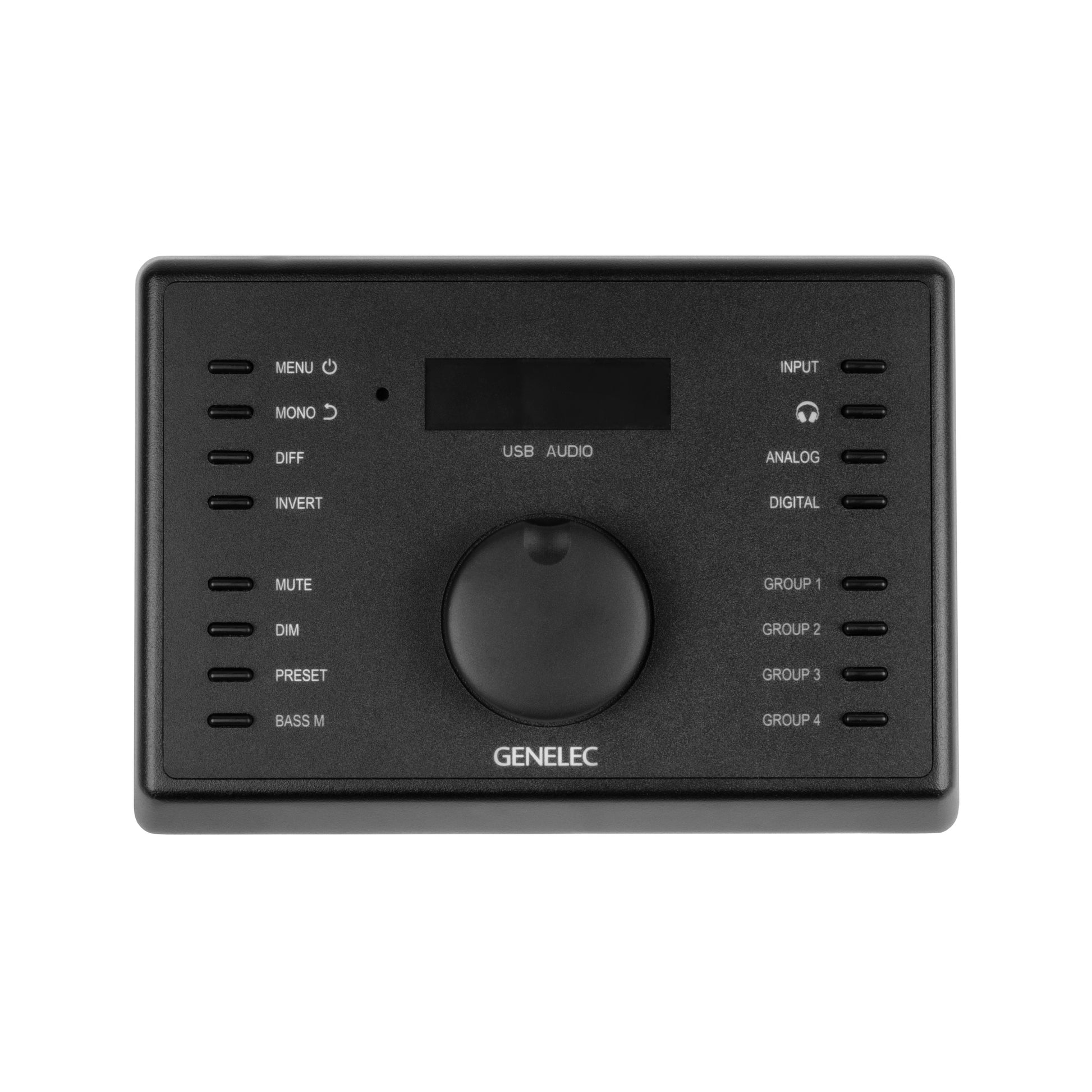

Genelec 9320A SAM Reference Controller

UNIO Audio Monitoring
UNIO empowers professionals to confidently work anywhere. As a key UNIO element, the 9320A integrates in-room and headphone monitoring for a single, reliable workflow – completely personalised for total accuracy.

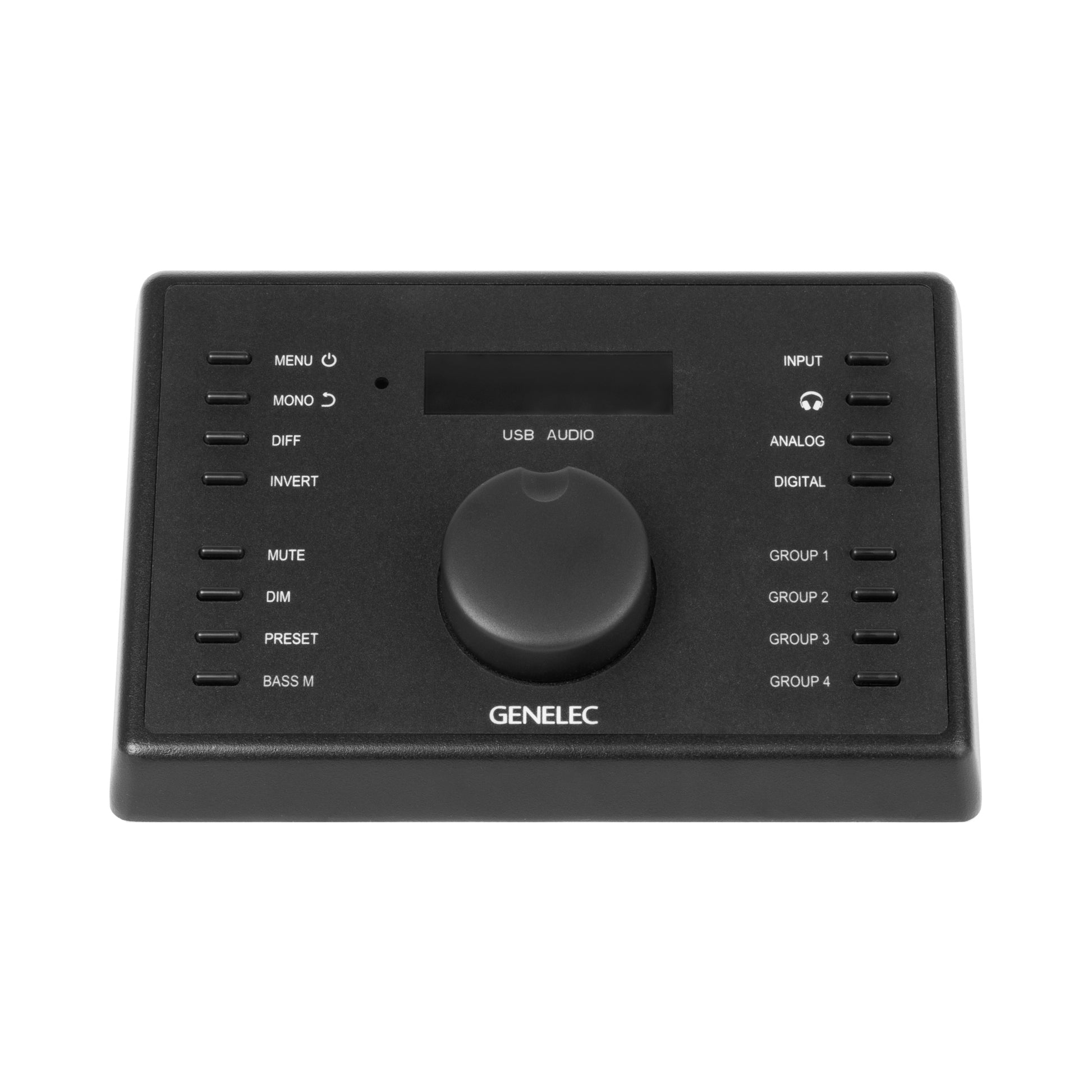

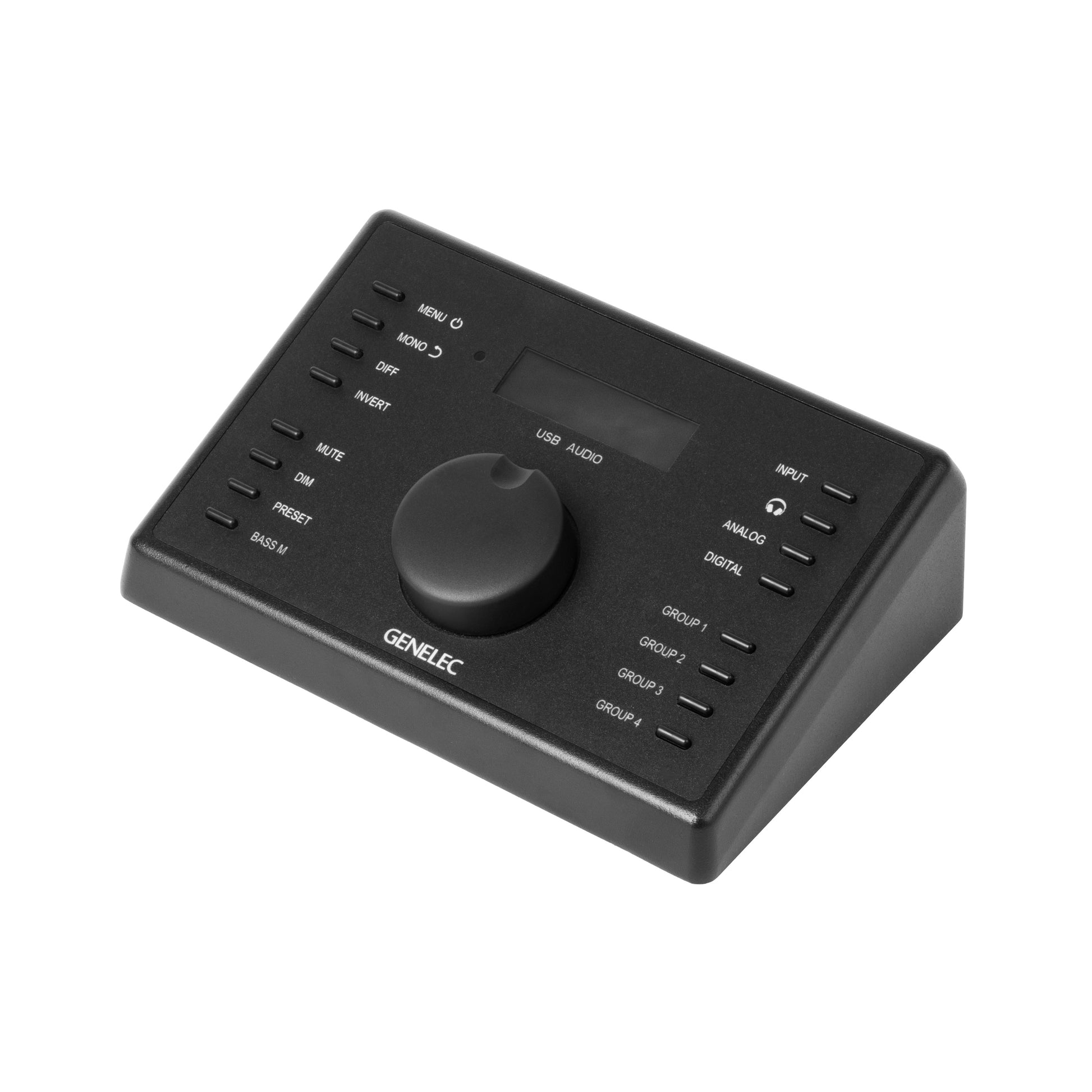

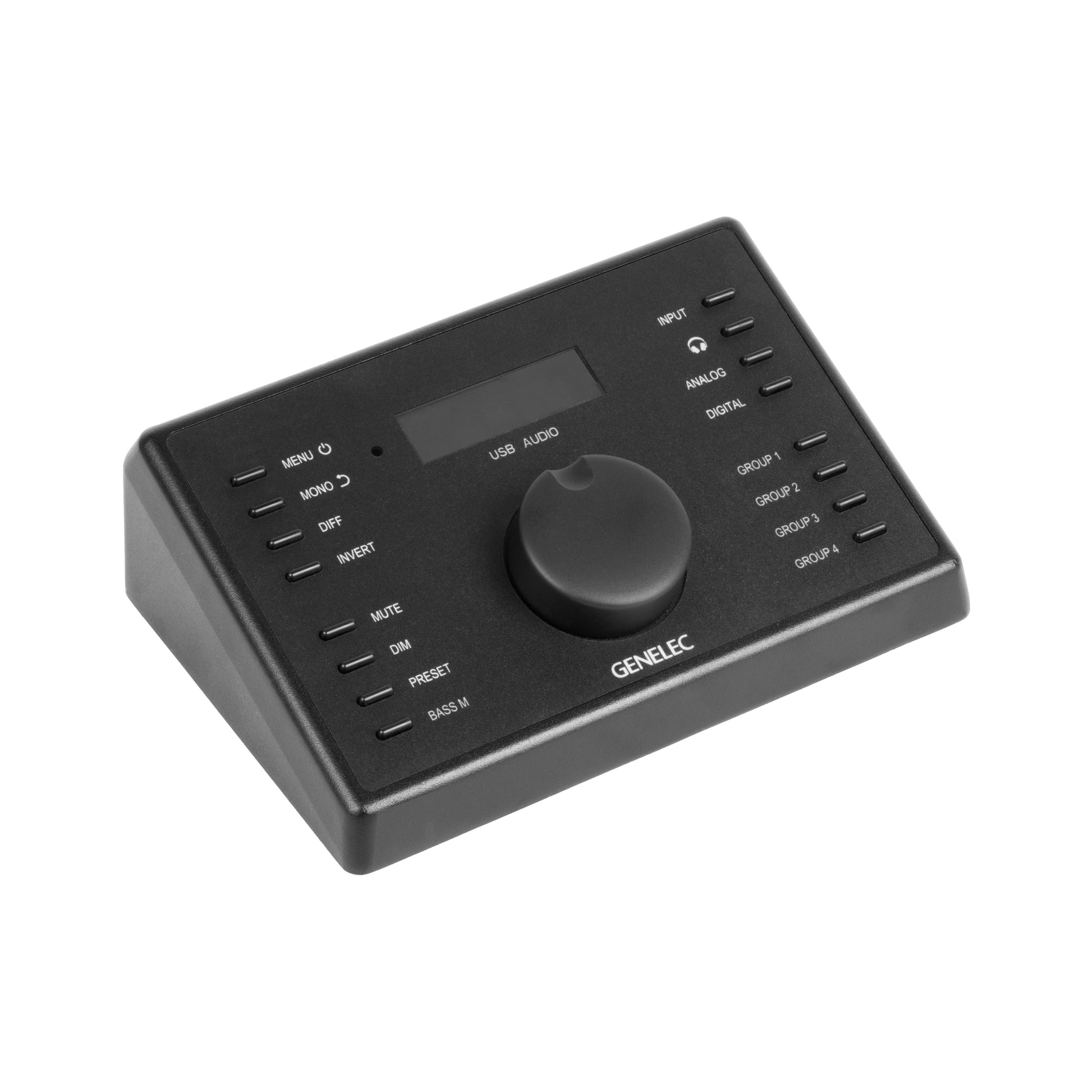

With its flexible connectivity, reference grade headphone output and physical control of our adaptive technologies, the 9320A is the ideal hub for professional audio work – from stereo to immersive – in any space.

The 9320A is designed for professional audio engineering on fixed and mobile setups.
Ideal for stereo and immersive music studios, game audio studios, broadcasting, streaming and AV post-production, the 9320A offers smooth management of SAM Monitoring systems – from stereo to immersive – and direct connectivity for monitoring of analogue and digital AES/EBU stereo audio over loudspeakers and headphones.

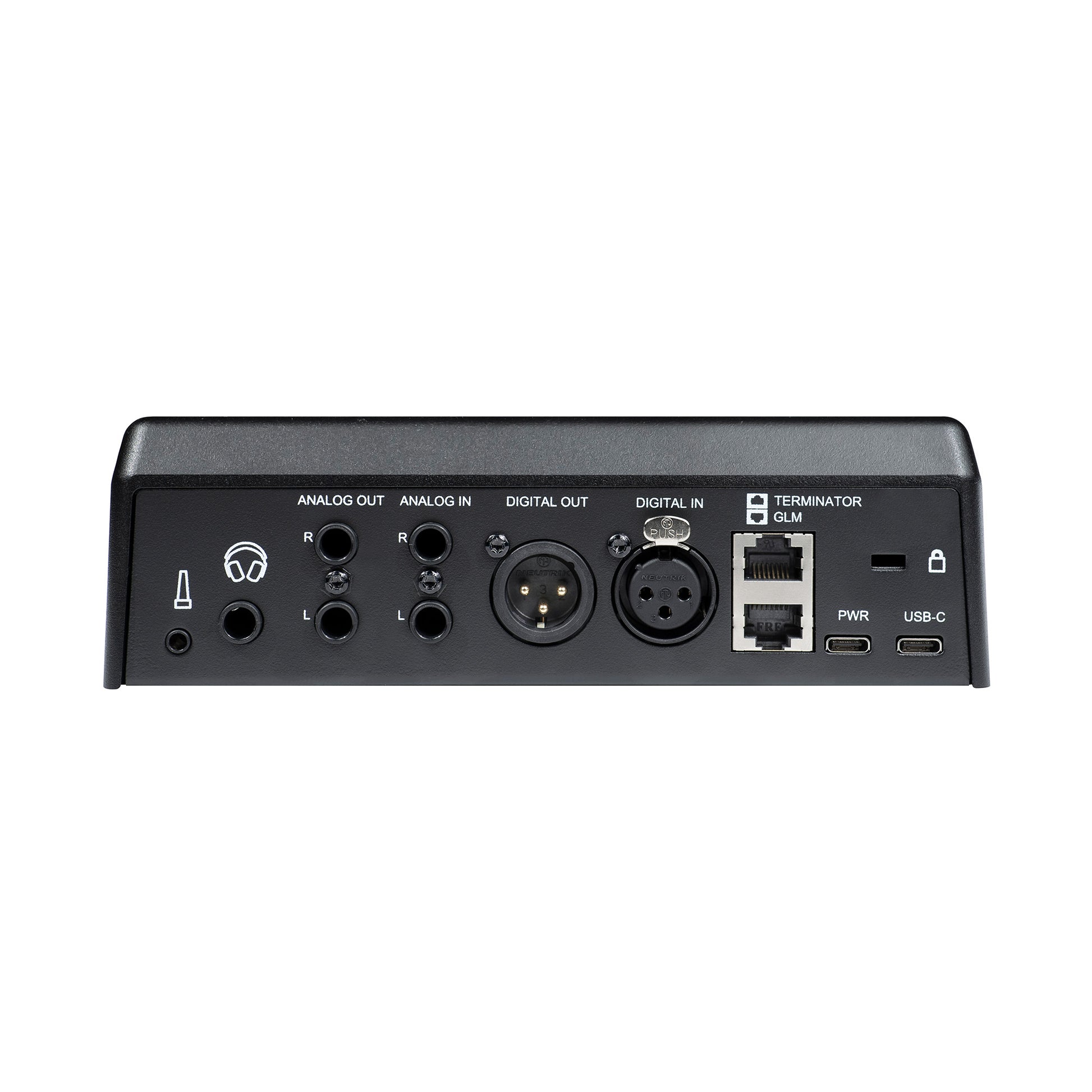

The in-device audio input options are: 

• Stereo USB audio
• Two analogue balanced line inputs
• Stereo AES/EBU digital audio

These three alternative inputs provide extremely flexible connectivity, with the ability to smoothly switch between each input and to easily channel the signal to directly connected analogue and digital stereo or stereo-with-subwoofer loudspeaker monitoring or professional headphones. Each output can be level-aligned for smooth switching across all inputs and outputs.

The 9320A is intended to be set up and used with a computer running GLM software and Aural ID software but can be also used in independent mode.

Powered by USB and equipped with a Type C USB interface, the 9320A consumes a maximum of 2.5 W of power, making it compatible with any computer-based DAW. Additionally, when USB interfaces cannot offer power, a separate USB Type C power input is provided. The audio bandwidth for all input/output combinations extends up to 46 kHz and offers a dynamic range exceeding 120 dB, THD+N lower than -110 dB, and minimal input to output latency in the range 2 to 3.2 ms.
