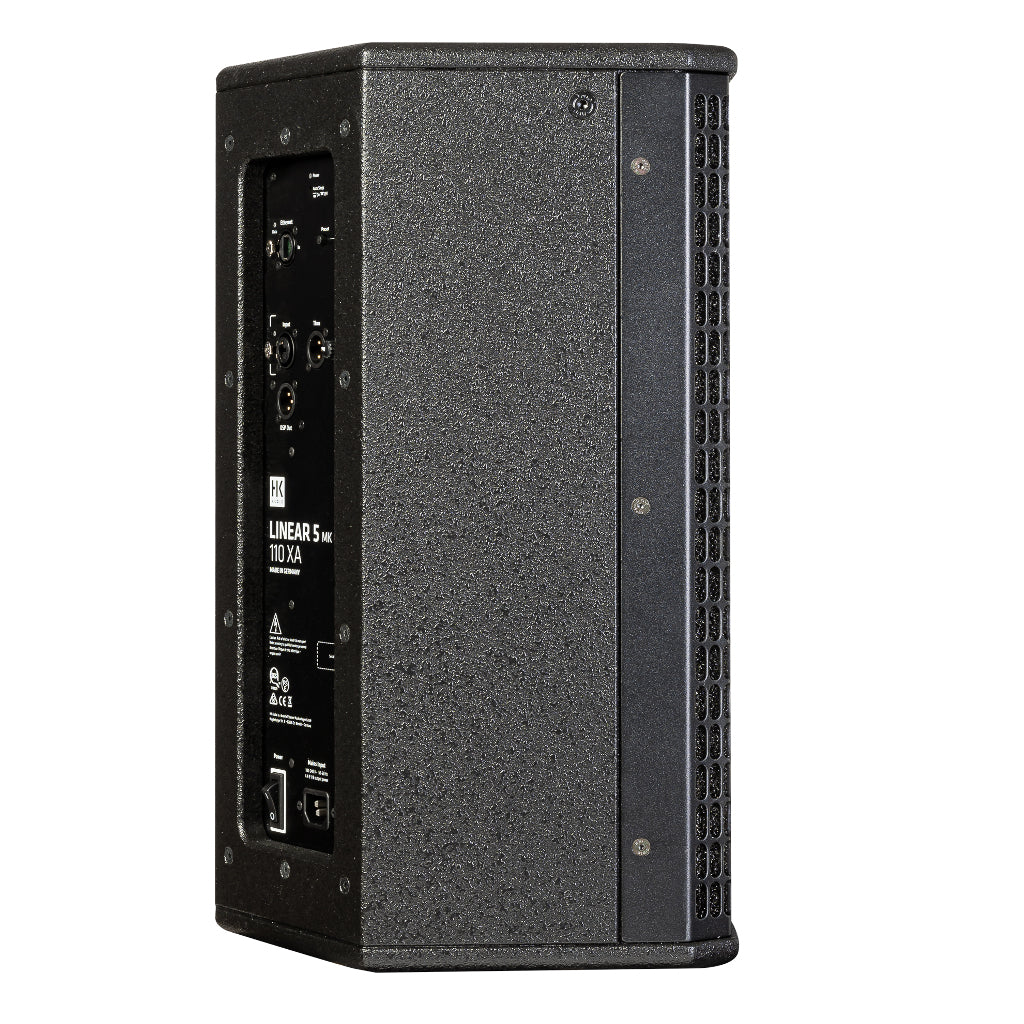

HK Audio LINEAR 5 MKII 110 XA 10-inch 1200W Active PA Loudspeaker

The LINEAR 5 MK II 110 XA is a compact, flexible multifunctional mid/ high unit with 10" woofer and tweeter with 1.4" voice coil. With its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60°, it covers an enormously wide range of system configurations. Its space-saving dimensions and narrow, horizontal dispersion allow low feedback, directional monitoring, even on small stages – even without turning the horn.

In addition to crystal-clear, assertive sound and impressive range, the LINEAR 5 MK II 110 XA features a remote-controllable high-performance DSP with integrated, directly selectable presets and DSP Out, which can route the processed signal from the speaker to a non-networked speaker, as well as a wide range of accessories.

The sturdy birch multiplex hybrid enclosure makes the LINEAR 5 MK II 110 XA a strong partner for bands and sound technicians – either as a transverse stage monitor or as a powerful system mid/high unit together with the LINEAR 5 MK II subwoofers.

Features:

• Compact, multifunctional enclosure shape with 31° monitor slope
• 1200 W peak power bi-amped Class-D power amplifier
• Rotatable horn with 80° x 60° dispersion pattern
• Lockable, balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker
• Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote
• Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Professional, lockable EtherCon connector for connection to a Mac or PC to control the system
• DSP Out: balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker. The audio signal applied here can be extensively modified using the DSP CON- TROL software
• HK AUDIO DuoTilt with 3° or 7° inclination
• Three reinforced M8 (AP-8) mounting points • Lockable V-Lock mains cable
• Made in Germany
