HK Audio LINEAR 7 110 XA 10-inch 2000W Active PA Loudspeaker

The LINEAR 7 110 XA is an active multifunctional speaker with modern DSP technology. The mixed IIR/FIR filtering ensures a very linear frequency response and low system latency. This makes the LINEAR 7 110 XA also ideal for use as a stage monitor.

The heart of the LINEAR 7 110 XA is the integrated DSP, which can be controlled via the HK Audio DSP CONTROL software. The HK Audio DSP CONTROL software offers the user numerous options for on-site system equalization and adjustment, such as a 10-band PEQ or group functions.

Four DSP presets can be selected directly on the speaker without a PC connected. In addition to three standard presets (Flat, Monitor and Low Cut), a fourth user-designed preset can also be recalled.

The LINEAR 7 also features a new generation of improved tweeter and woofer transducers. In combination with the tweeter horns, which have also been newly developed, these offer the highest acoustic performance within the entire LINEAR family.

Features:

• Active multifunctional loudspeaker with network control • 1× 10-inch bass-midrange driver with 2.5" voice coil
• 1× 1-inch compression driver with 1.4" voice coil
• Rotatable CD horn, 80° × 60° (horizontal x vertical)
• DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
• Modern network technology for precise control of all DSP features
• Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker
• Direct access to easily selectable presets on the speaker for use as a monitor or system speaker
• High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms

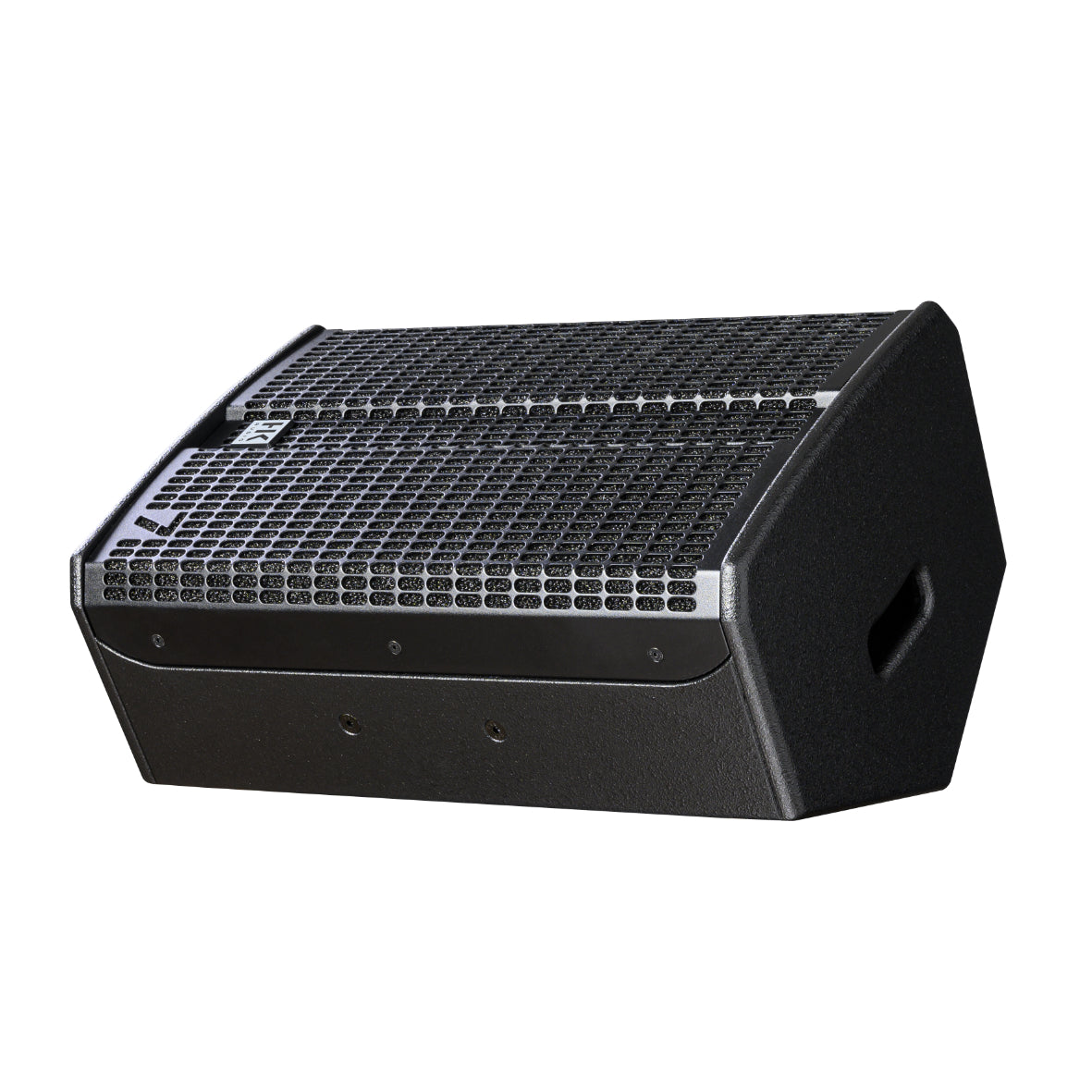

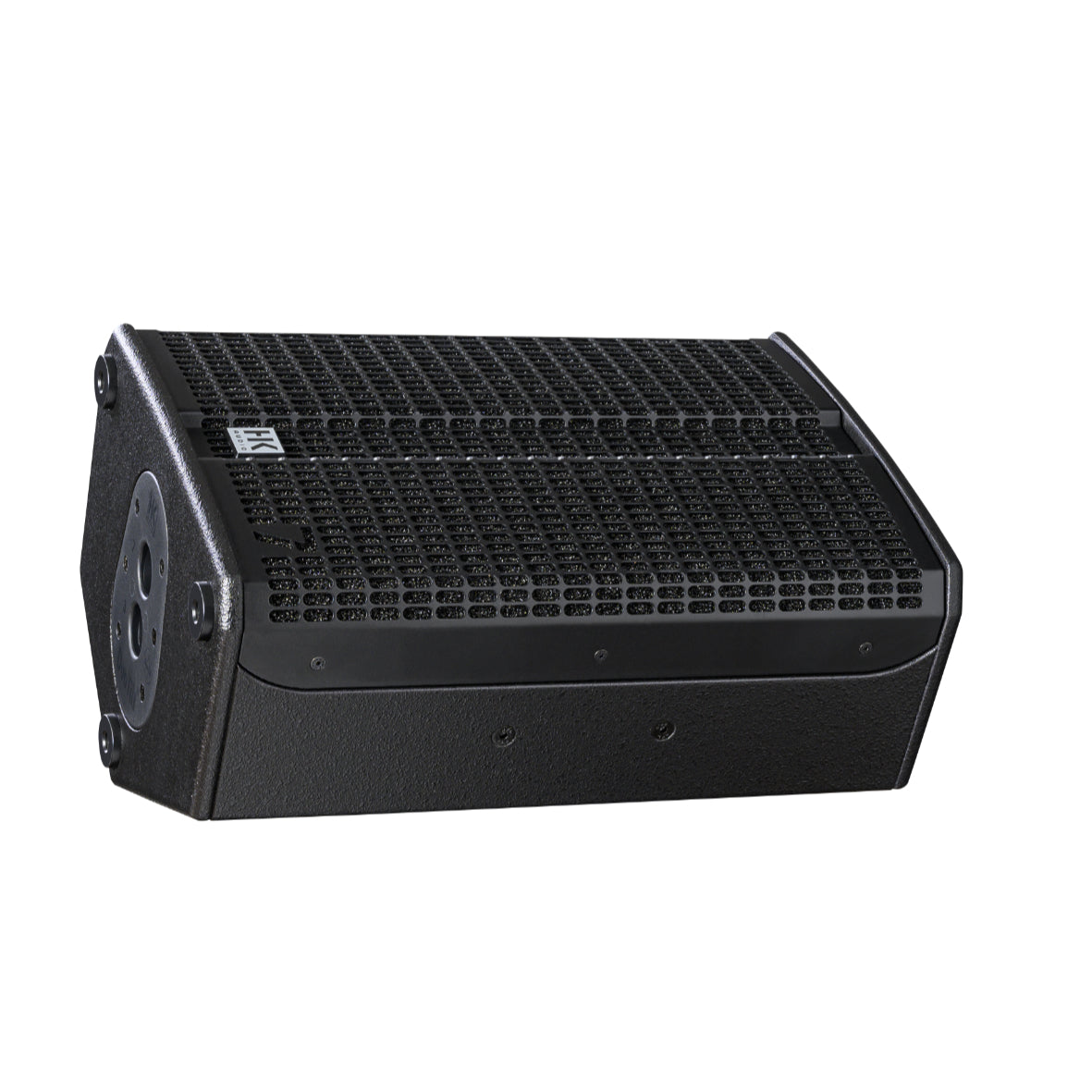

• Multi-purpose housing for use as a FoH or monitor speaker thanks to 30° housing angle

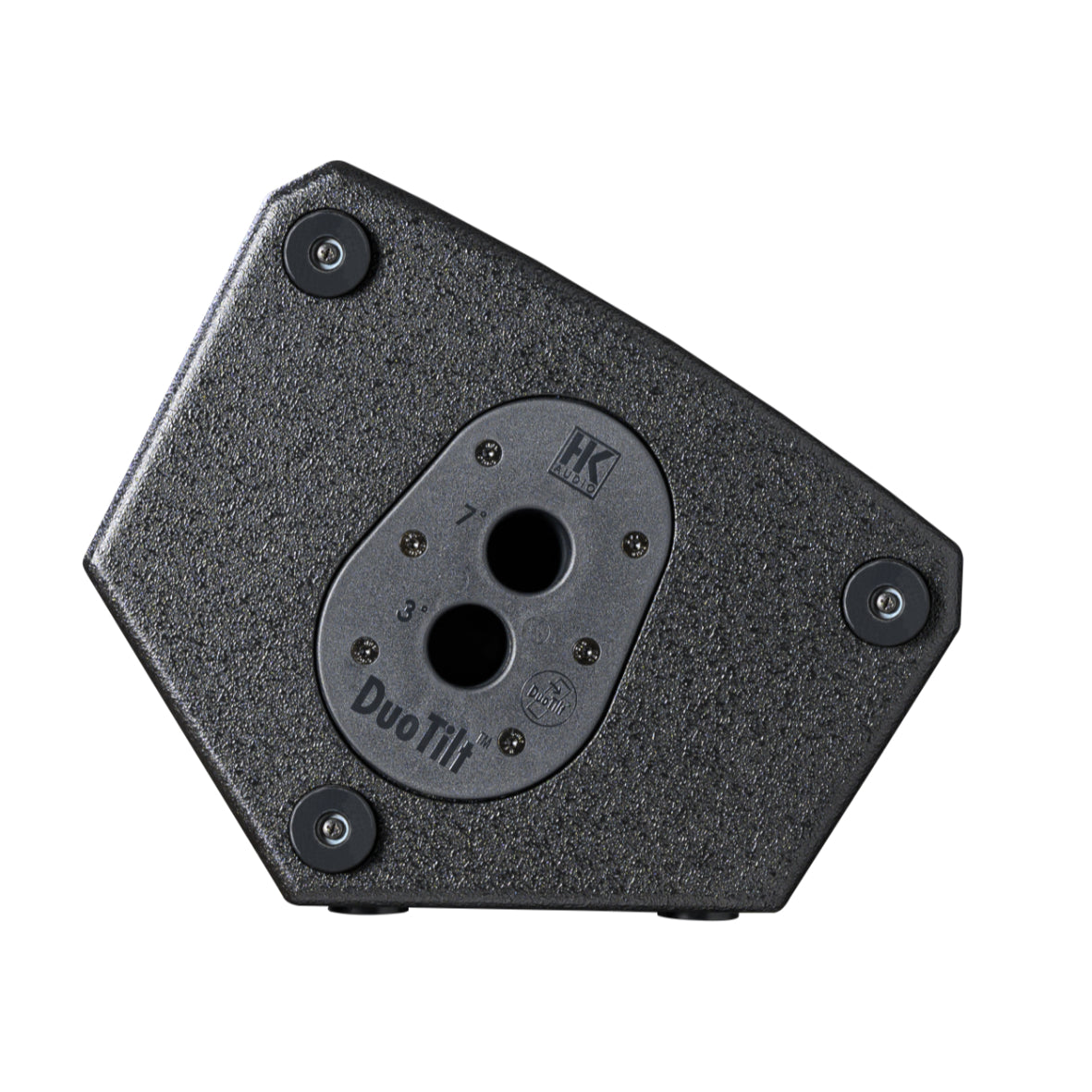

• DuoTilt for 3° or 7° tilt for tripod mounting
• User friendly rigging and mounting options

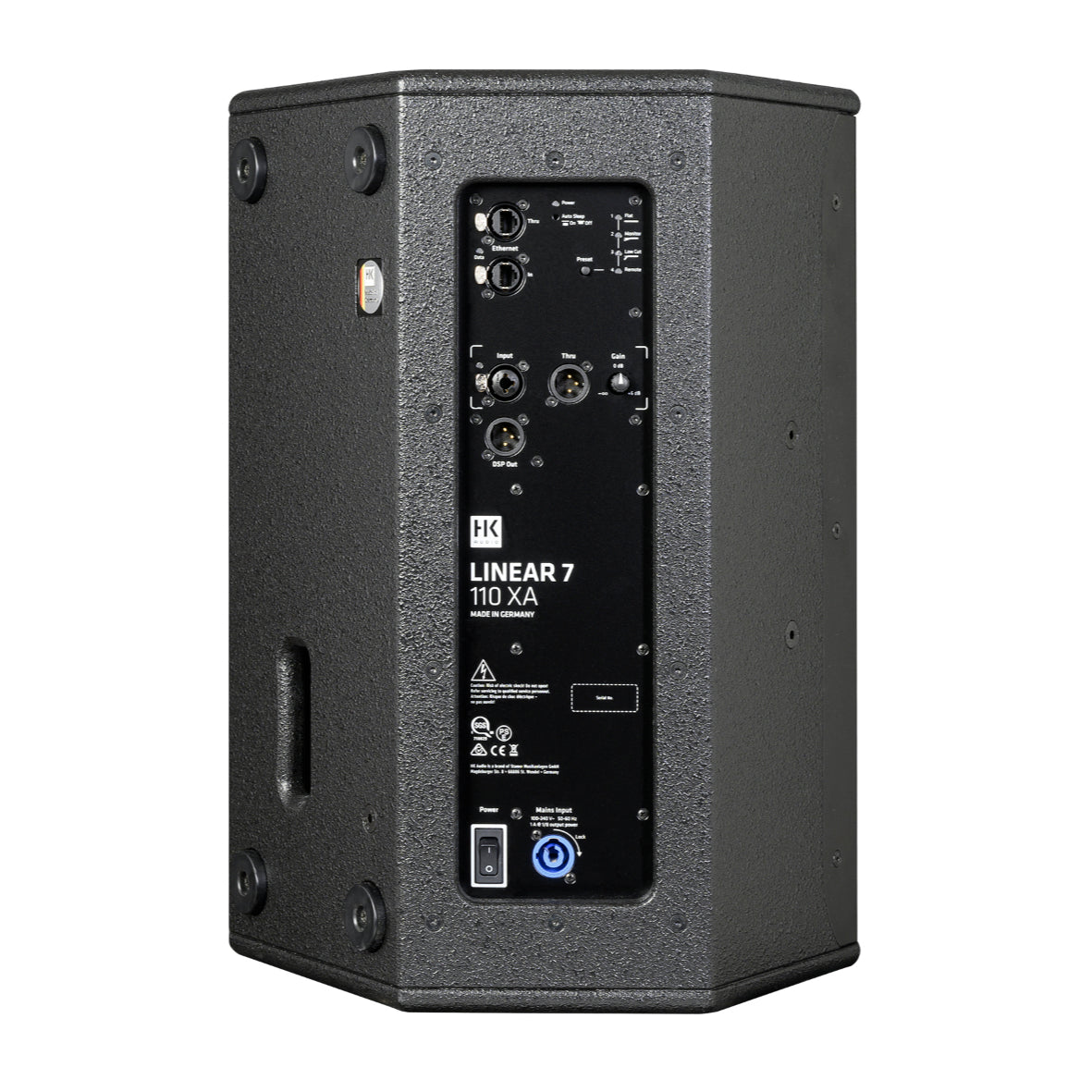

• Professional Powercon and Ethercon connections
• Sturdy hybrid housing made of birch multiplex and MDF
