HK Audio LINEAR 7 112 FA 12-inch 2000W Active PA Loudspeaker

The LINAER 7 112 FA is an active full-range loudspeaker with modern DSP technology. The mixed IIR/FIR filtering ensures a very linear frequency response and low system latency. The enclosure of the LINEAR 7 112 FA is designed with angled sides for acoustically correct clustering.

The heart of the LINEAR 7 112 FA is the integrated DSP, which can be controlled via the HK Audio DSP CONTROL software. The HK Audio DSP CONTROL software offers the user numerous options for on-site system equalization and adjustment, such as a 10-band PEQ or group functions.

Four DSP presets can be selected directly on the speaker without a PC connected. In addition to three standard presets (Flat, Boost and Low Cut), a fourth user-designed preset can also be recalled.

The LINEAR 7 also features a new generation of improved tweeter and woofer transducers. In combination with the tweeter horns, which have also been newly developed, these offer the highest acoustic performance within the entire LINEAR family.

Features:

• Active full-range loudspeaker with network control
• 1× 12-inch bass-midrange driver with 2.5" voice coil
• 1× 1-inch compression driver with 1.7" voice coil
• Rotatable CD horn, 70° × 50° (horizontal × vertical)
• DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
• Modern network technology for precise control of all DSP features
• Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker
• Direct access to easily selectable presets on the speaker for use in a system with LINEAR 7 subwoofers or full-range operation without a subwoofer
• High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms
• 70° clustering bracket integrated in enclosure

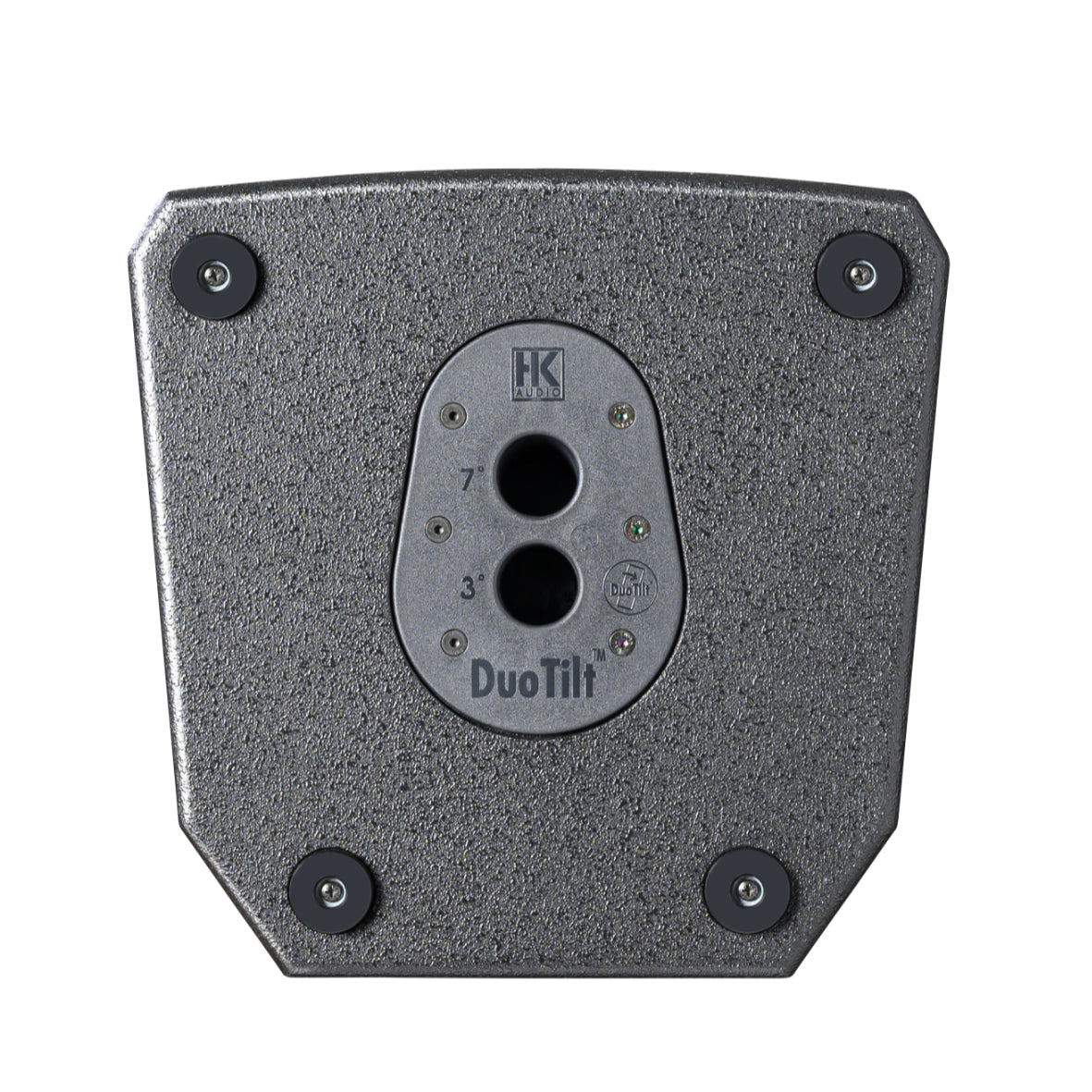

• DuoTilt for 3° or 7° tilt for tripod mounting
• User friendly rigging and mounting options

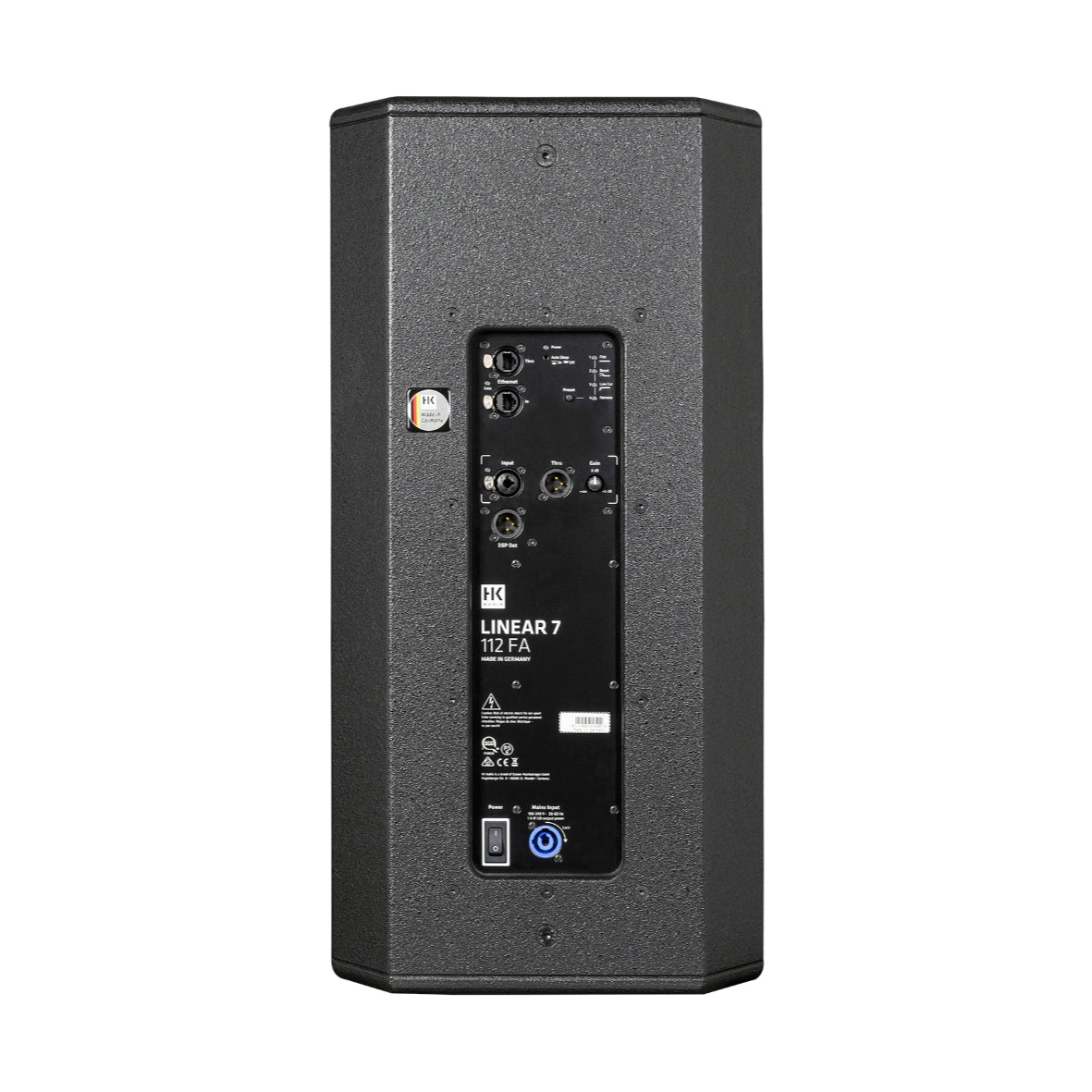

• Professional Powercon and Ethercon connections
• Sturdy hybrid housing made of birch multiplex and MDF
