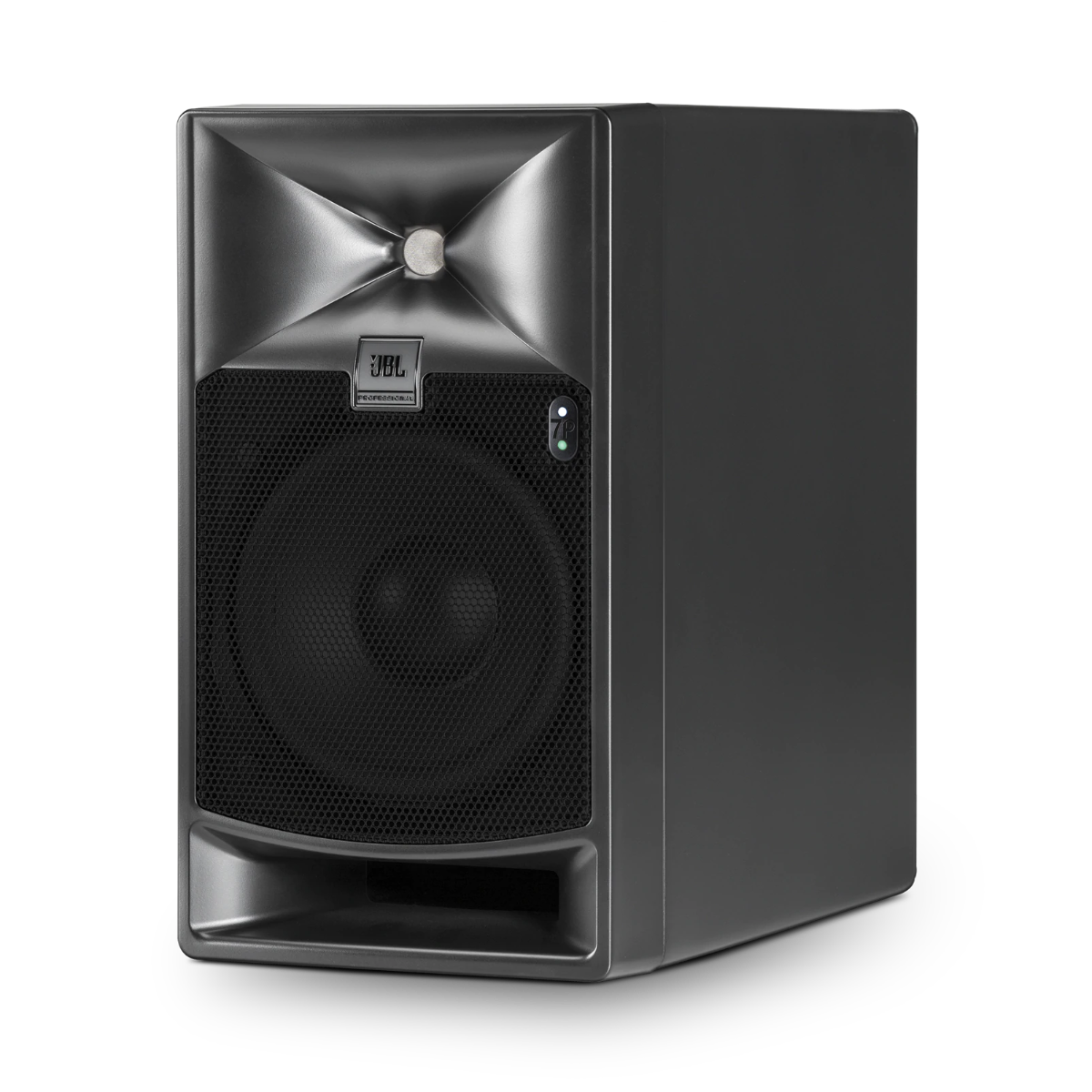

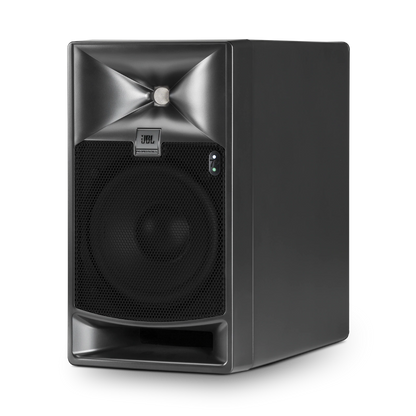

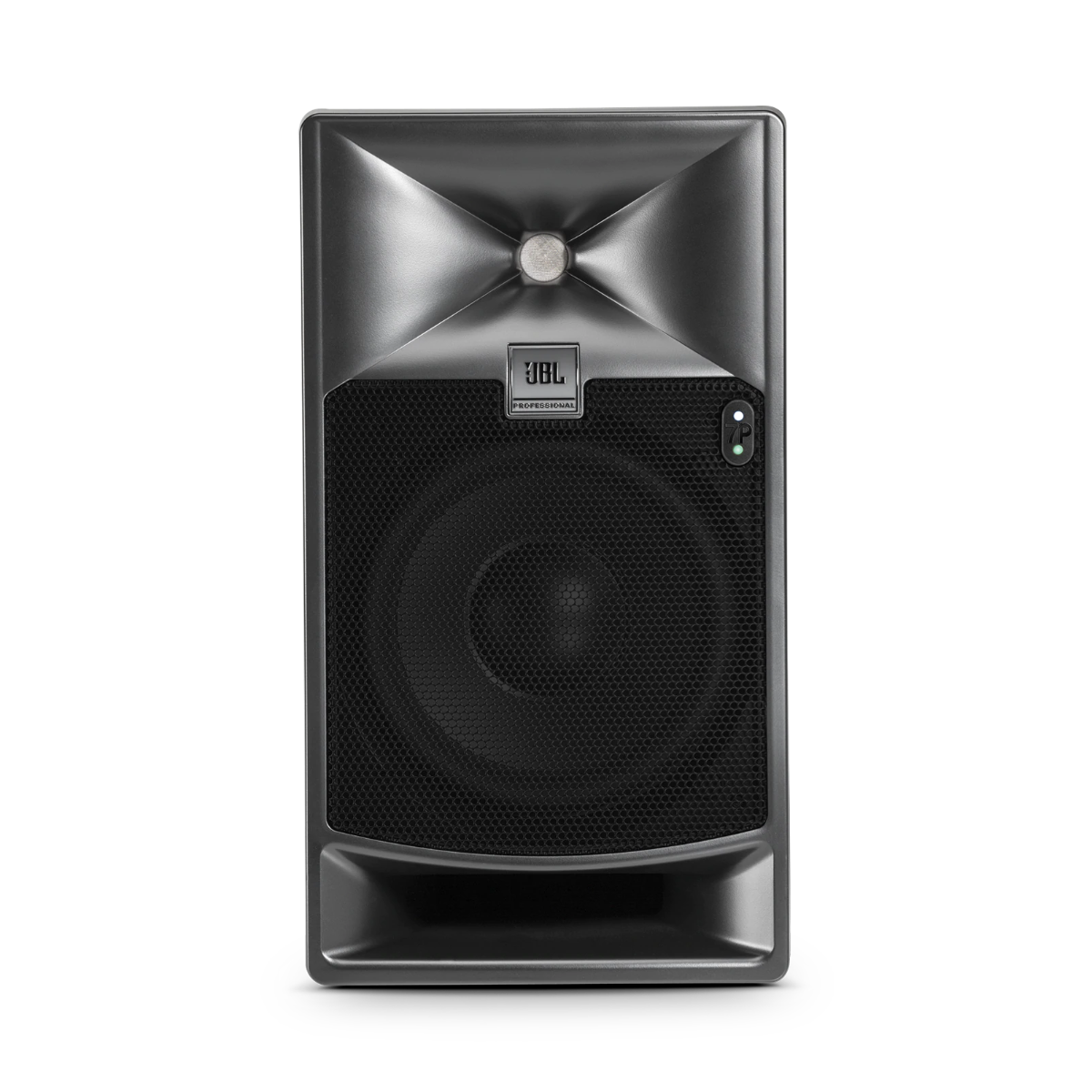

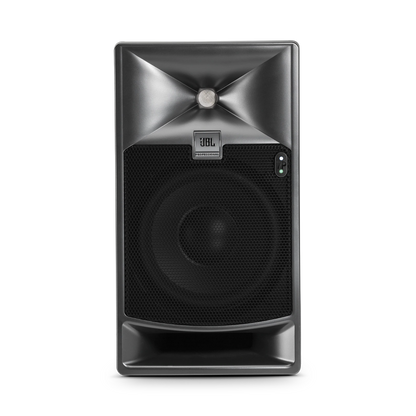

JBL 705P 5" Powered Studio Reference Monitor

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL’s renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.

Key Features:

• Next-generation JBL driver technology

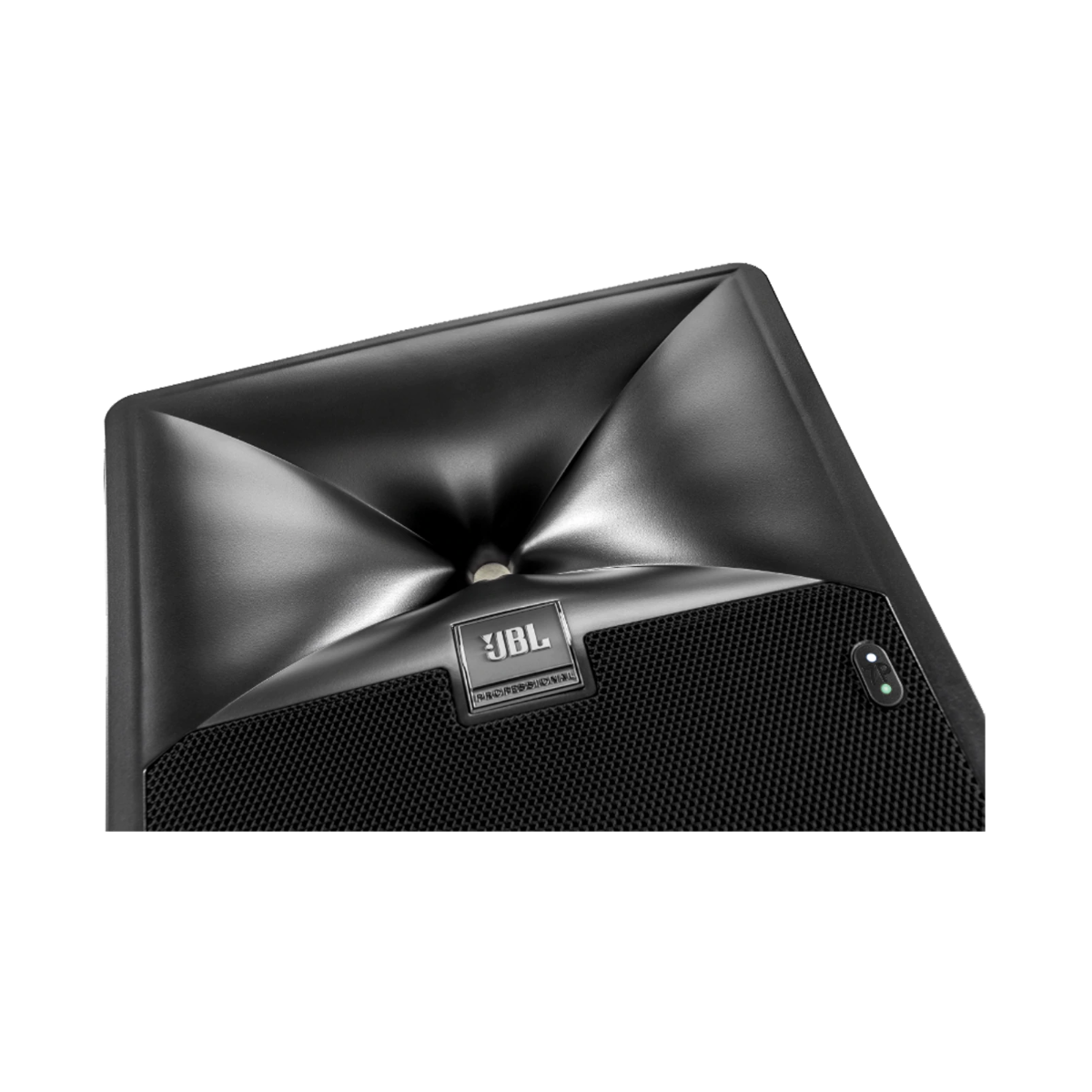

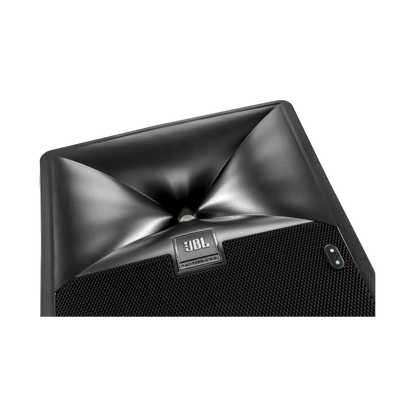

• Patent-pending JBL Image Control Waveguide
• Integrated dual amplification system with internal floating-point DSP
• Comprehensive room EQ and delay controls
• Compact enclosures for easy placement and installation
• JBL 725G low-frequency transducer delivers low-distortion and high SPL
• JBL 2409H high-frequency transducer with low-mass annular diaphragm
• JBL-designed patent-pending Image Control Waveguide
• 2-channel Class-D amplifier HF 250W / LF 250W
• 192 kHz, 32-bit floating point processing
• 12 bands of Room EQ, 8 bands of User EQ
• 6 factory presets, 6 user-defined presets
• 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
• 1 x XLR-1/4" balanced combination analog audio input
• 1 x XLR AES3 format digital input with 1 x XLR pass-through output
• Digital input accepts sample rates of up to 192 kHz
• User-enabled sample rate converters
• RJ-45 network connection for Harman HiQnet connectivity

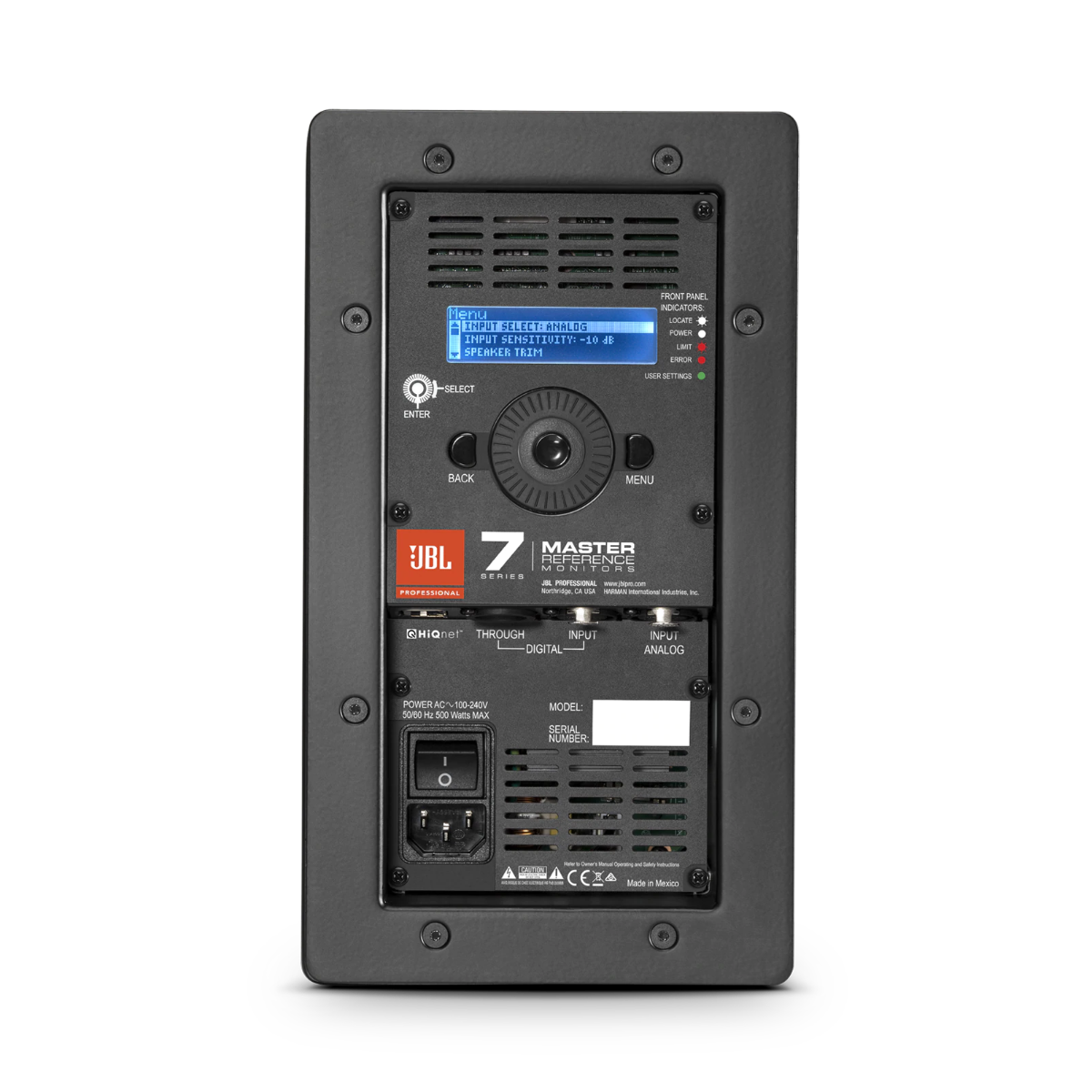

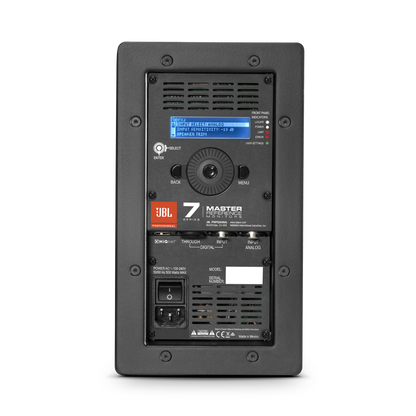

• Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
• Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
• Protective steel grilles
