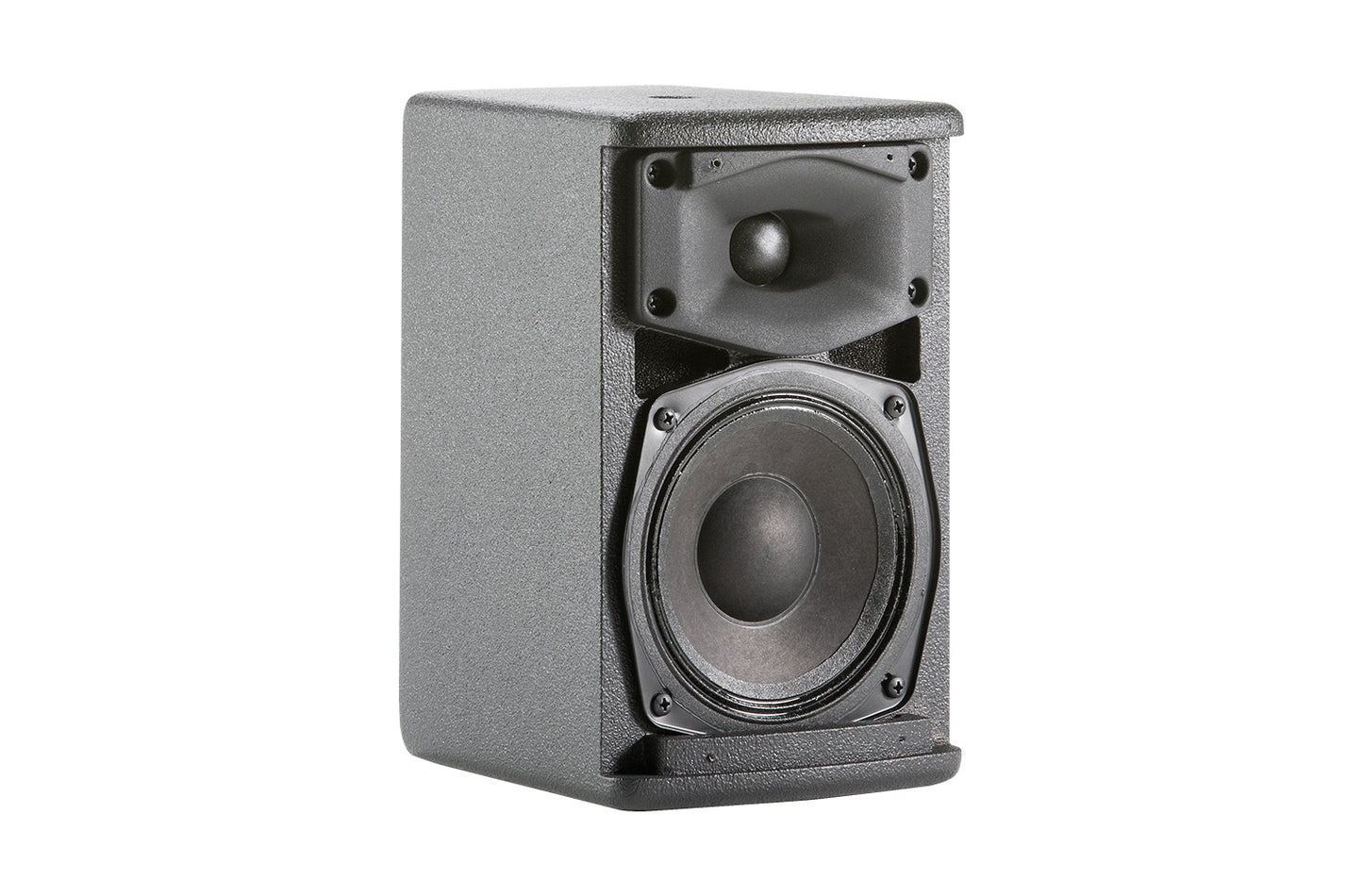

JBL AC15 Loudspeaker Passive Compact 2-Way (PAIR)

JBL AC15 Loudspeaker Passive Compact 2-Way (PAIR)

Regular price $829.00
Regular price Sale price $829.00
Sold out
Inclusive of GST

Arriving Soon

We are expecting shipment to arrive soon. Meanwhile, contact us to reserve your set today!

View full details

Ultra Compact 2-way Loudspeaker with 1 x 5.25” LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

Features

  • 1” Dome Tweeter with 90° x 90° Coverage.
  • 135 mm (5.25 in) LF transducer
  • Ultra compact enclosure
  • 300W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality

Specifications

Frequency Range (-10dB) 80 Hz -20 kHz
Frequency Response (±3 dB) 90 Hz -18 kHz
System Power Rating 225 W (AES rated)
150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
Impedance 16 ohms
Coverage Pattern 90° x 90°
Dimensions (H x W x D) 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
Net Weight (each) 4.7 kg (10.5 lb)
Crossover Modes Passive
Maximum SPL (1m) 108 dB
System Sensitivity (1w @ 1m) 86 dB SPL
Nominal Section Impedances 16 ohms
LF Driver 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
Nominal LF Driver Impedance 16 Ohms
HF Driver 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
Enclosure 12 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT
Environmental Mil-Std 810; IPx3 per IEC529.
