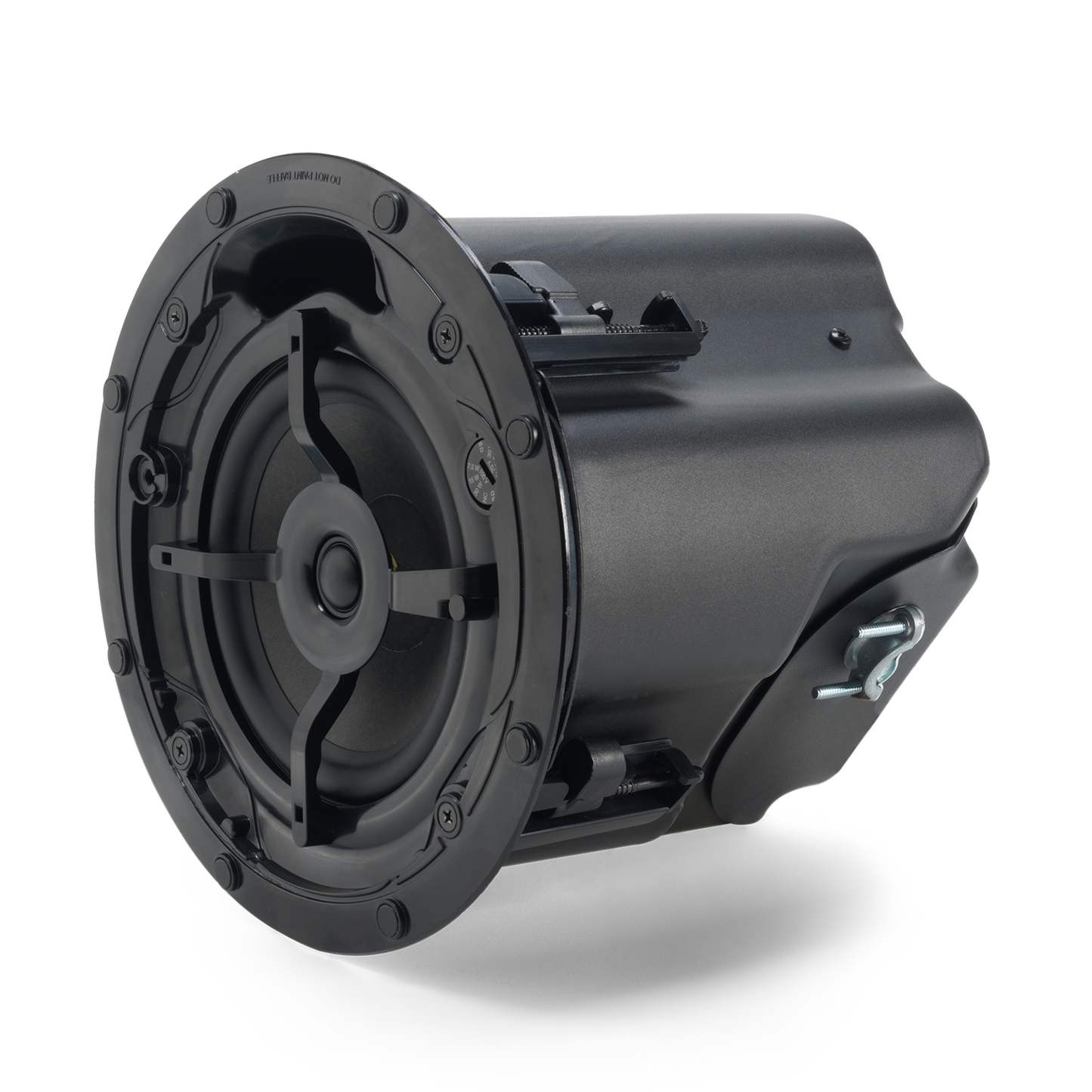

The JBL Control 416C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

Features

• 165 mm (6.5 in) woofer and 20mm (0.75 in) soft-dome tweeter

• Integrated enclosure that is ideal for installation in most ceiling plenum spaces

• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

• Full-face, easily paintable magnetic grilles

• Top and side cable entry options

• Robust and adaptable dogears for wide range of ceiling thicknesses

• IP33 rated

Powerful Two-Way Audio Performance

Engineered for clear, full-range sound reproduction, the JBL Control 416C/T features a 6.5-inch woofer paired with a 0.75-inch soft-dome tweeter, delivering enhanced low-frequency response, detailed highs, and excellent speech intelligibility.

With a frequency range of 61 Hz to 20 kHz, the speaker provides rich musical performance and balanced tonal response for both background and foreground audio applications.

Wide 120° Coverage for Consistent Sound

The Control 416C/T features a 120° conical coverage pattern, ensuring even sound dispersion throughout the listening area.

Its wide coverage minimizes dead zones and hot spots, helping integrators achieve smooth and consistent audio performance with fewer speakers.

Flexible Installation & System Integration

Designed for commercial installation efficiency, the JBL Control 416C/T includes an integrated enclosure optimized for most ceiling plenum spaces.

The built-in transformer supports both 70V/100V distributed systems and 8Ω low-impedance operation, offering excellent flexibility for commercial audio designs.

Sleek, Customizable Design

Blending seamlessly into modern interiors, the speaker includes a full-face, bezel-less magnetic grille that is paintable to match any décor.

Ideal Applications

• Retail stores & boutiques

• Restaurants, cafés & hospitality venues

• Corporate offices & meeting rooms

• Corridors, lobbies & public spaces
