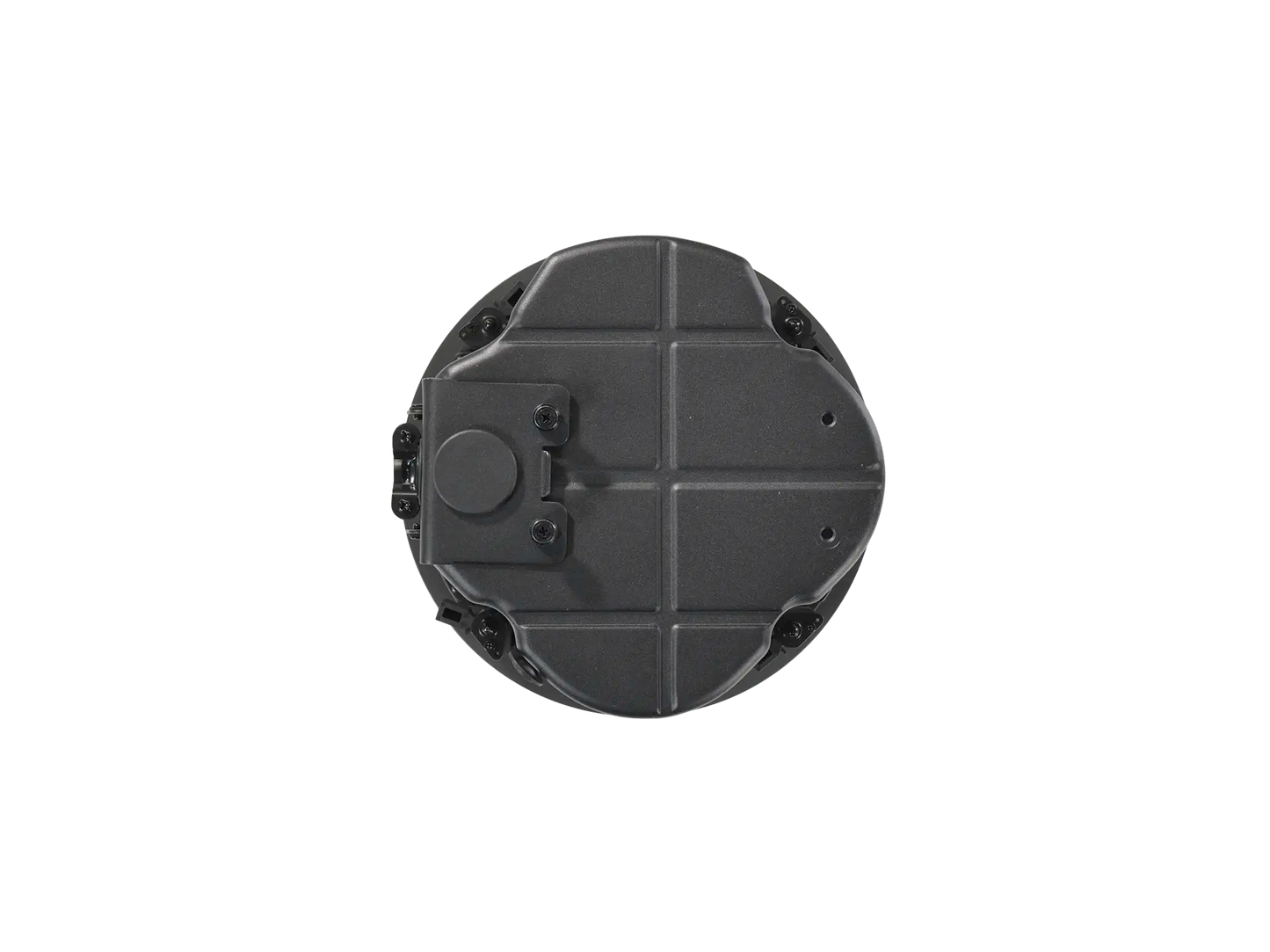

The JBL Control 426C/T is a premium two-way coaxial ceiling loudspeaker designed for commercial distributed audio systems that demand powerful sound performance, exceptionally consistent coverage, and flexible installation. Part of the JBL Control 400 Enhanced Coverage Series, the speaker incorporates JBL’s proprietary CRBI™ technology to deliver smooth, full-range audio across a wide listening area with fewer speakers required.

Features

• Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter

• Integrated enclosure that is ideal for installation in most ceiling plenum spaces

• CRBI™ technology for consistent 110° coverage across the listening area

• Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input

• Full-face, easily paintable magnetic grilles

• Top and side exit cable entry options

• Robust and adaptable dogears for wide range of ceiling thicknesses

• IP33 rated

Superior Two-Way Audio Performance

Engineered for clear, balanced, and full-range sound reproduction, the JBL Control 426C/T features a 6.5-inch woofer and 1-inch textile soft-dome tweeter in a coaxial configuration for improved phase alignment and sonic consistency.

With a frequency range of 72 Hz to 19 kHz, the speaker delivers articulate vocals, strong midrange presence, and detailed high-frequency response suitable for both background and foreground music applications.

CRBI™ Technology with Consistent 110° Coverage

The JBL Control 426C/T delivers a broad 110° conical coverage pattern, ensuring smooth and even sound distribution throughout commercial environments.

JBL’s proprietary CRBI™ technology provides exceptionally smooth tonal balance and intelligibility throughout the listening area, minimizing on-axis hot spots and off-axis drop-off. Its CRBI™ waveguide technology improves consistency across the listening area, enabling integrators to cover larger spaces with fewer speakers while maintaining excellent speech intelligibility and musical clarity.

Flexible Installation & System Integration

Designed for efficient commercial installation, the JBL Control 426C/T features an integrated enclosure optimized for most ceiling plenum spaces.

The built-in transformer supports both 70V/100V distributed systems and 12Ω low-impedance operation, offering excellent flexibility for professional audio system integration.

Sleek Architectural Design

The JBL Control 426C/T features a full-face, bezel-less magnetic grille designed to blend seamlessly into modern commercial interiors. Its refined appearance makes it ideal for architecturally sensitive installations.

Ideal Applications

• Retail stores & shopping malls

• Restaurants, cafés & hospitality venues

• Corporate offices & meeting spaces

• Hotels, lounges & public facilities

• Educational and commercial distributed audio systems
