The JBL Control 440CS/T is a high-performance 8-inch in-ceiling subwoofer engineered for professional distributed audio systems that require deep bass extension, low distortion, and seamless architectural integration. As part of the flagship JBL Control 400 Premium Coverage Series, this ceiling subwoofer is designed to complement JBL satellite ceiling speakers while delivering powerful low-frequency reinforcement for commercial environments.

Features

• 200 mm (8 in) woofer with SBR surround

• Integrated enclosure with large, tapered dual ports for warm, smooth bass response

• Built-in passive crossover network enabling it to be used as part of a subwoofer-satellite system

• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

• Full-face, easily paintable magnetic grilles

• Top and side exit cable entry options

• Robust and adaptable dogears for wide range of ceiling thicknesses

• IP33 rated

Powerful Low-Frequency Performance

Designed for warm, smooth, and impactful bass reproduction, the JBL Control 440CS/T features a 200 mm (8-inch) long-excursion woofer with a treated paper cone, polymerized SBR surround, and high-performance magnet assembly.

Its integrated enclosure with large tapered dual ports enhances bass response while minimizing distortion, making it ideal for both background and foreground music applications in commercial spaces.

With a frequency range of 32 Hz to 300 Hz, the subwoofer delivers extended low-end performance and musical bass reinforcement.

Integrated Passive Crossover for Satellite Systems

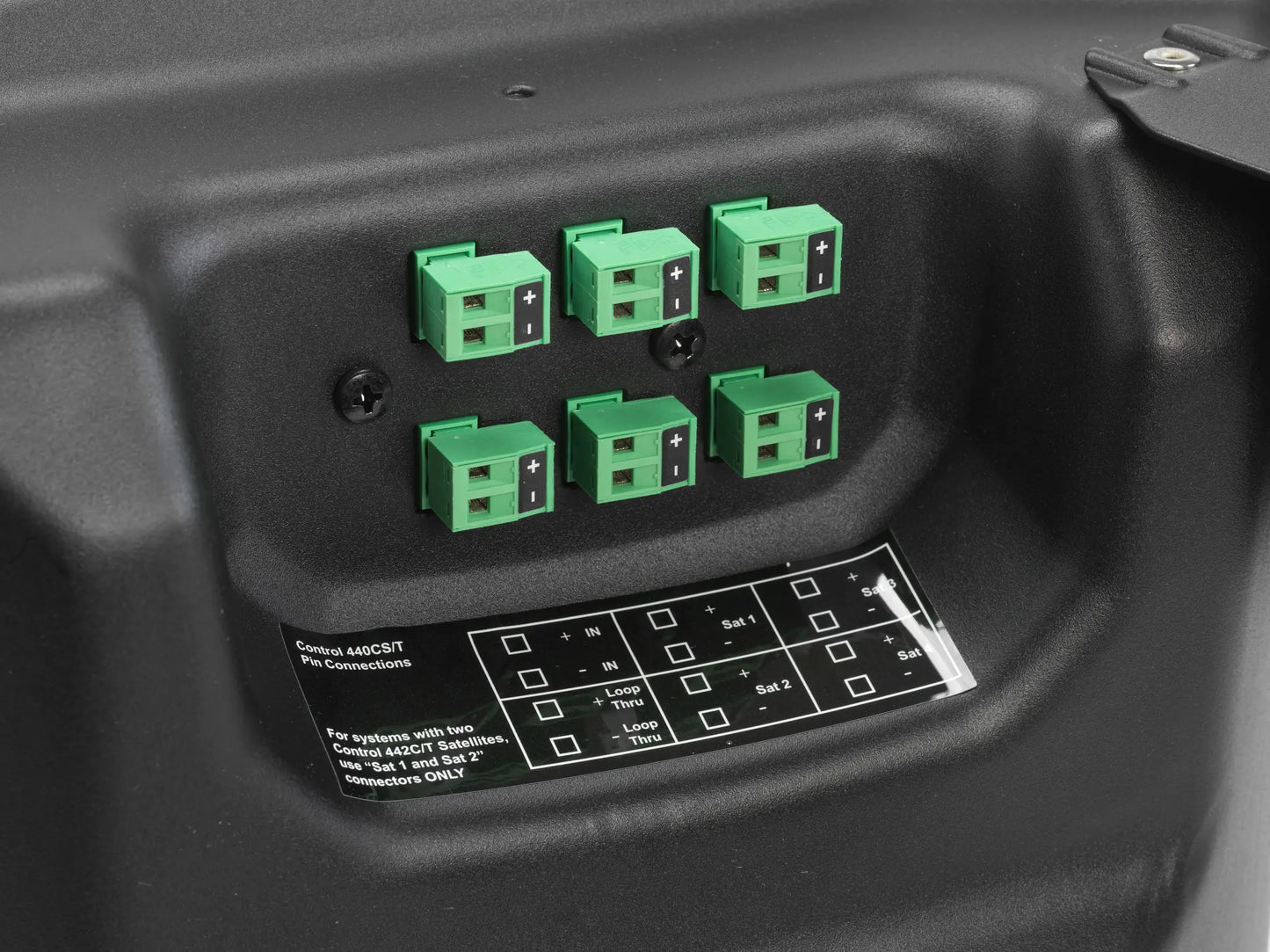

The JBL Control 440CS/T includes a built-in passive crossover network, enabling seamless integration into subwoofer-satellite speaker systems.

The crossover provides high-passed outputs for two or four satellite speakers, simplifying installation and improving system performance without requiring external DSP crossover processing in many applications.

Flexible Installation & System Integration

Engineered for efficient commercial installation, the JBL Control 440CS/T features a reinforced integrated backcan enclosure optimized for ceiling-mounted distributed audio systems.

The built-in multi-tap transformer supports both 70V/100V distributed systems and 8Ω low-impedance operation, offering flexible integration into professional commercial audio systems.

Refined Architectural Design

The JBL Control 440CS/T features a full-face, bezel-less magnetic grille designed to blend seamlessly into modern commercial interiors. Its clean architectural appearance makes it ideal for retail, hospitality, and corporate installations where aesthetics are important.

Ideal Applications

• Retail stores & shopping malls

• Restaurants, cafés & hospitality venues

• Corporate offices & meeting spaces

• Hotels, lounges & public facilities

• Educational and commercial distributed audio systems
