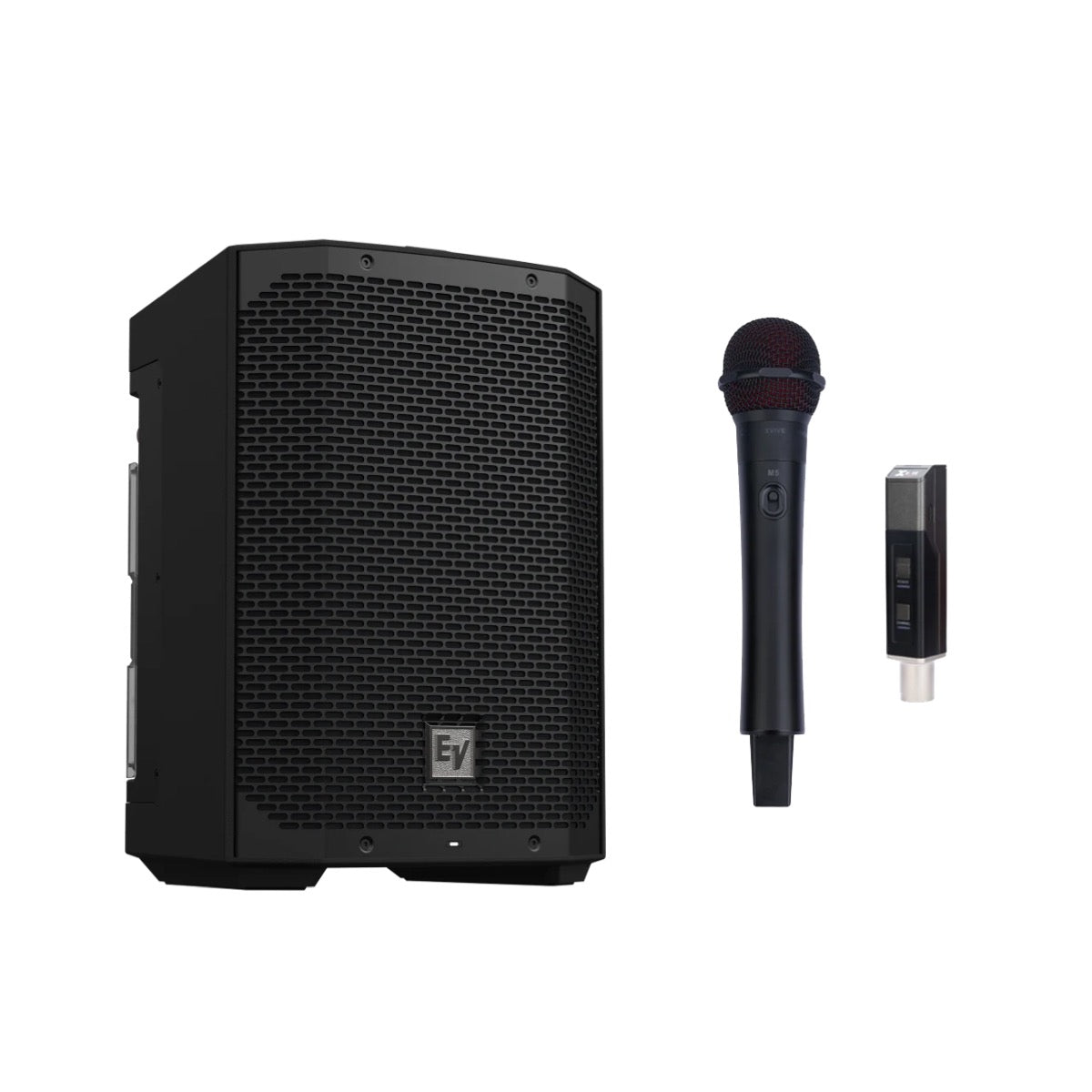

BUNDLE COMES WITH:

- Electro-Voice EVERSE 8 Battery-Powered Portable PA Speaker

- Xvive M5 Wireless Microphone System

ELECTRO-VOICE EVERSE 8 BATTERY-POWERED PORTABLE PA SPEAKER

The first battery-powered loudspeaker from Electro-Voice and the first weatherized model of its type, EVERSE 8 takes advantage of decades of Electro-Voice engineering expertise – along with the latest advancements in technology – to provide a truly portable and truly wireless audio experience at a price and performance level unmatched by current comparable products on the market.

Whether used for live music, vocal reinforcement and/or audio playback, musicians, DJs, production/rental companies, fitness/activity instructors and other professional, amateur and recreational users can all benefit from EVERSE 8’s superior sound quality, user-friendliness and all-in-one PA system design – a concept that opens-up real pro-audio performance for a wider range of users than ever before. EVERSE 8 comes in a black or white finish, adding an aesthetic angle to its versatility.

REAL PRO-AUDIO PERFORMANCE

With a maximum SPL rating of 121 dB and wide, even 100º x 100º coverage, EVERSE 8’s capabilities defy its compact form factor and set uncompromising new benchmarks for its product segment. Core components include an 8” woofer mounted using EV’s patented SST (Signal Synchronized Transducers) port design, and a high-output titanium tweeter mounted onto a custom constant-directivity waveguide. And, as with all Electro-Voice portable loudspeakers, EVERSE 8’s system reliability is verified with extensive music abuse and endurance testing.

BATTERY-POWERED CONVENIENCE

EVERSE 8 is powered by a custom-designed high-capacity Li-ion battery pack, fully optimized for audio use and providing plentiful power for up to 12 hours of run time. Protection circuitry reduces the risk of the battery discharging to such a low voltage that it can no longer be recharged – for example, after long periods in storage. Tool-free screws make removing the battery pack effortless. Uncompromising sound quality, unplugged.

IP43-RATED WEATHERIZED DESIGN

In combination with the rugged polypropylene enclosure, use of the included weatherized input cover allows EVERSE 8 to meet the IP43 rating (water resistant for splashes and light rain) when running on battery power and while Bluetooth® streaming. Built-in feet with no-skid rubber pads ensure the system stays put. Bring EVERSE 8 outside for busking, marching band practice, or the backyard BBQ, or wherever a PA is needed, whatever the forecast.

COMPACT & LIGHTWEIGHT

Every detail of EVERSE 8 is designed to maximize easy lifting and transportation – all while reinforcing EV’s reputation for real-world durability. An ergonomically designed soft-touch handle and premium lightweight construction make it a breeze to move and mount EVERSE 8. Pack it into the optional tote bag and head out to the gig. It’s the all-in-one pro-audio system you can grab to go.

POWERED BY DYNACORD

EVERSE 8 is driven by a high-efficiency Class-D amplifier and DSP module developed in collaboration with the world-class audio electronics engineering team at EV’s sibling brand Dynacord. Pro features include a built in four-channel digital mixer with studio-quality effects and processing, 48 V phantom power, feedback suppression and audio ducking. Between the EV and the D badges, you get the best of both worlds.

WIRELESS CONTROL & MONITORING

Use the EV QuickSmart Mobile app to adjust all audio, effects and mix functions via your phone or tablet. An intuitive user interface makes it simple to shape your sound to the space, so you can focus on the show.

XVIVE M5 WIRELESS MICROPHONE SYSTEM

The M5 System includes a high-quality dynamic Microphone/Transmitter and a wireless Receiver

Stable wireless broadcast on the 5.8 GHz band with high-fidelity 24-bit/48 kHz audio and very low latency

7 wireless channels to choose from including default Auto mode and six fixed-frequency channels

The mic head can be swapped out with mic heads from other brands including Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt® and Austrian Audio®

Microphone signal can be sent to multiple M5 Receivers

Up to six M5 Systems can be used simultaneously in one location on fixed-frequency channels, and/or up to five M5 systems on Auto Mode

CONNECTING THE RECEIVER

After wirelessly linking the units, connect the M5 Receiver to your audio device. Plug the Receiver directly into an XLR mic input on your device (mixer, powered speaker, audio interface). This is the simplest and most common setup.

XLR-TO-1/4″ OPTIONS

The M5 Receiver connects to a female XLR input only, ready to connect directly into an XLR mic input on your mixer or interface. However, the included XLR-to-6.35 mm (1/4”) adapter also allows you to connect to 1/4” inputs on powered speakers or amplifiers!

ONE MICROPHONE, MULTIPLE RECEIVERS

To send a signal from one Microphone/Transmitter to multiple Receivers, select one of the fixed-frequency channels (1–6) and set the Transmitter and all Receivers to the same channel. Auto Mode (Channel 0) cannot be used with more than one Receiver connected to the same Transmitter.

CAPSULE COMPATIBILITY

The M5 handheld Transmitter is compatible with the following Microphone Heads:

Shure®: Beta58A, Beta87A, Beta87C, KSM8, KSM9, KSM9HS, PG58, SM58, SM86, SM87A
Electro-Voice®: RC2-767, RC2-967, RC2-PL80a, RC2-410, RC2-510, RE420-RC3, RE520-RC3
Heil Sound®: RC22, RC35
Telefunken®: M80WH, M81WH
Lectrosonics®: HHC, HHVMC
Lewitt®: W9
Austrian Audio®: OD505 WL1, OC707 WL1
