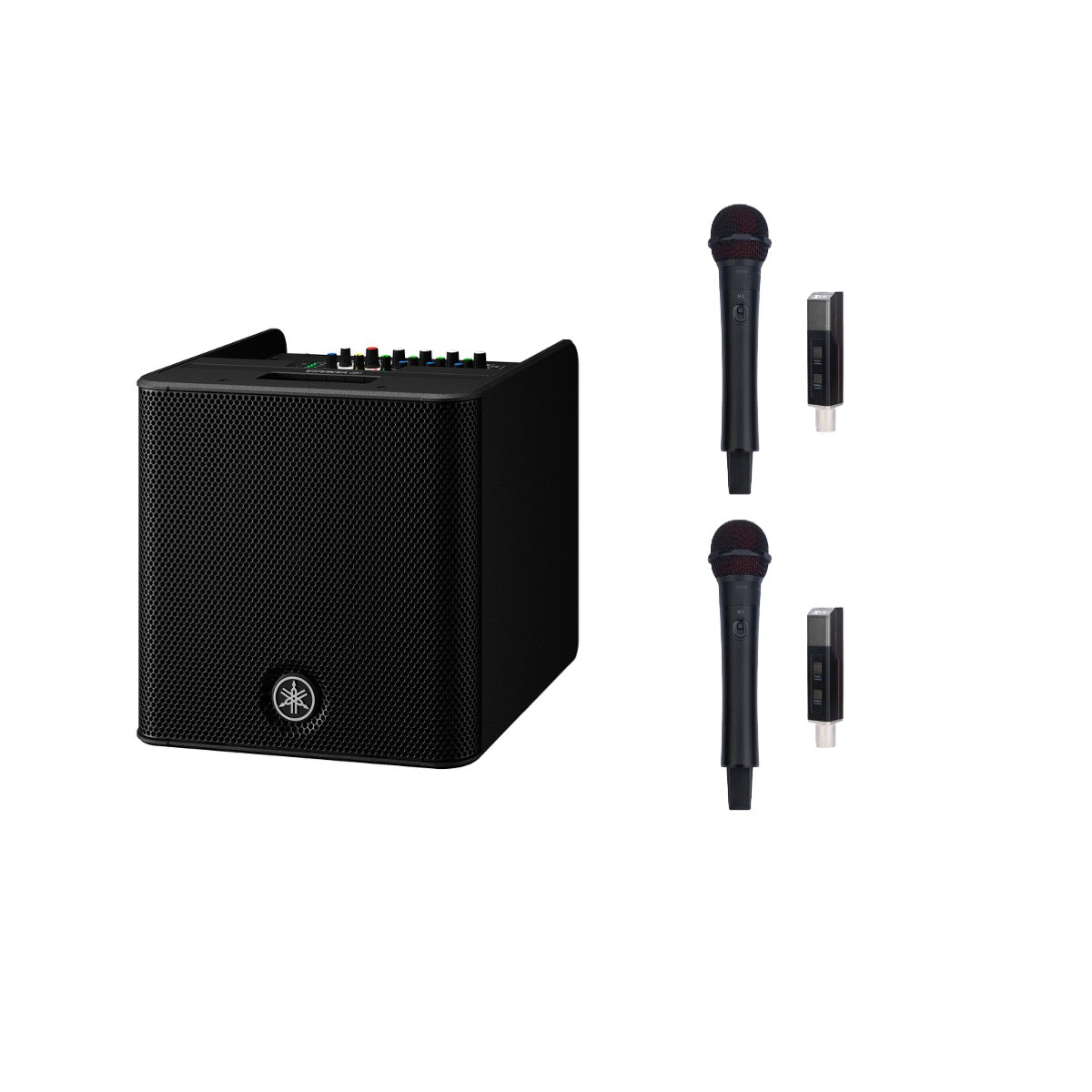

BUNDLE COMES WITH:

- Yamaha StagePas 200 Portable PA System (with/without battery)

- Xvive M5 Wireless Microphone System (2pcs)

With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200/200BTR is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of live sound features, and superb overall performance, your audience will be stunned by the sound that comes from this powerful, yet compact setup. The STAGEPAS 200BTR comes with a high-capacity lithium-ion battery, while the other is compatible with optional batteries, giving you the flexibility to inspire performers and audiences alike in virtually any environment you choose — from street performances, to events, parties and speeches.

• 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
• 1.4” HF + 8” LF high-quality coaxial compression driver
• 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor “MODE”
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Hi-Z input
• Equipped with link-out/monitor out
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Optional BTR-STP200 battery included with STAGEPAS 200BTR
• Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app

XVIVE M5 WIRELESS MICROPHONE SYSTEM

The M5 System includes a high-quality dynamic Microphone/Transmitter and a wireless Receiver

Stable wireless broadcast on the 5.8 GHz band with high-fidelity 24-bit/48 kHz audio and very low latency

7 wireless channels to choose from including default Auto mode and six fixed-frequency channels

The mic head can be swapped out with mic heads from other brands including Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt® and Austrian Audio®

Microphone signal can be sent to multiple M5 Receivers

Up to six M5 Systems can be used simultaneously in one location on fixed-frequency channels, and/or up to five M5 systems on Auto Mode

CONNECTING THE RECEIVER

After wirelessly linking the units, connect the M5 Receiver to your audio device. Plug the Receiver directly into an XLR mic input on your device (mixer, powered speaker, audio interface). This is the simplest and most common setup.

XLR-TO-1/4″ OPTIONS

The M5 Receiver connects to a female XLR input only, ready to connect directly into an XLR mic input on your mixer or interface. However, the included XLR-to-6.35 mm (1/4”) adapter also allows you to connect to 1/4” inputs on powered speakers or amplifiers!

ONE MICROPHONE, MULTIPLE RECEIVERS

To send a signal from one Microphone/Transmitter to multiple Receivers, select one of the fixed-frequency channels (1–6) and set the Transmitter and all Receivers to the same channel. Auto Mode (Channel 0) cannot be used with more than one Receiver connected to the same Transmitter.

CAPSULE COMPATIBILITY

The M5 handheld Transmitter is compatible with the following Microphone Heads:

Shure®: Beta58A, Beta87A, Beta87C, KSM8, KSM9, KSM9HS, PG58, SM58, SM86, SM87A
Electro-Voice®: RC2-767, RC2-967, RC2-PL80a, RC2-410, RC2-510, RE420-RC3, RE520-RC3
Heil Sound®: RC22, RC35
Telefunken®: M80WH, M81WH
Lectrosonics®: HHC, HHVMC
Lewitt®: W9
Austrian Audio®: OD505 WL1, OC707 WL1
