Portable PA Bundle - STAGEPAS 600BT/M5
Portable PA Bundle - STAGEPAS 600BT/M5
Couldn't load pickup availability
Specifications
Specifications
What's in the Box
What's in the Box
Warranty
Warranty
1 Year Warranty
Warranties offered in Singapore by each brand may differ from international warranties. Warranty period or coverage may change without prior notice. Click here for more information.

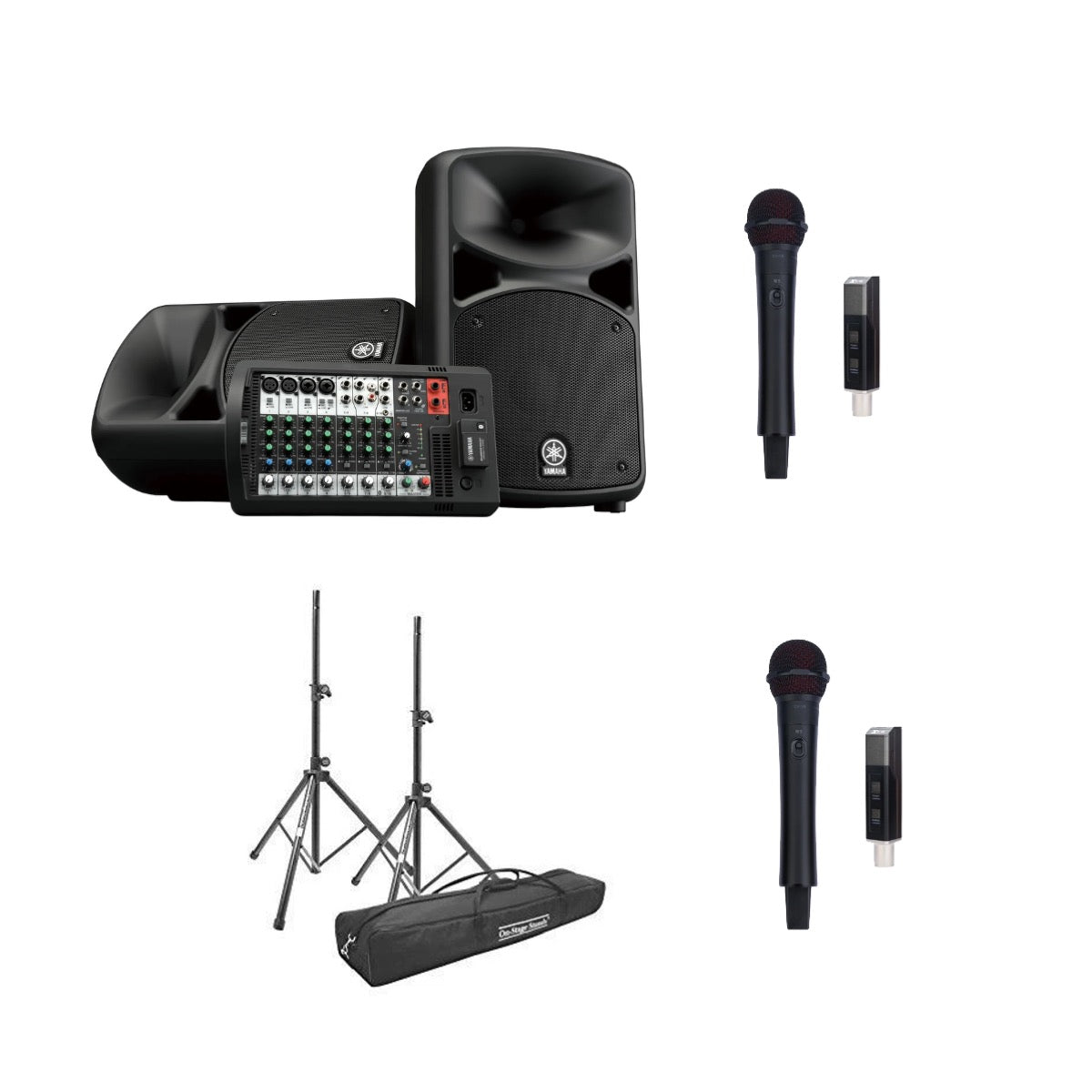

BUNDLE COMES WITH:
- Yamaha StagePas 600BT Portable PA System
- Xvive M5 Wireless Microphone System (2pcs)
Yamaha StagePas 600BT Portable PA System
680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
- 680W (340W + 340W) power output
- High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
- Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
- Bluetooth® audio streaming
- 1-Knob Master EQ‚Ñ¢ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 3-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
- Optional reverb footswitch
XVIVE M5 WIRELESS MICROPHONE SYSTEM
The M5 System includes a high-quality dynamic Microphone/Transmitter and a wireless Receiver
Stable wireless broadcast on the 5.8 GHz band with high-fidelity 24-bit/48 kHz audio and very low latency
7 wireless channels to choose from including default Auto mode and six fixed-frequency channels
The mic head can be swapped out with mic heads from other brands including Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt® and Austrian Audio®
Microphone signal can be sent to multiple M5 Receivers
Up to six M5 Systems can be used simultaneously in one location on fixed-frequency channels, and/or up to five M5 systems on Auto Mode
CONNECTING THE RECEIVER
After wirelessly linking the units, connect the M5 Receiver to your audio device. Plug the Receiver directly into an XLR mic input on your device (mixer, powered speaker, audio interface). This is the simplest and most common setup.
XLR-TO-1/4″ OPTIONS
The M5 Receiver connects to a female XLR input only, ready to connect directly into an XLR mic input on your mixer or interface. However, the included XLR-to-6.35 mm (1/4”) adapter also allows you to connect to 1/4” inputs on powered speakers or amplifiers!
ONE MICROPHONE, MULTIPLE RECEIVERS
To send a signal from one Microphone/Transmitter to multiple Receivers, select one of the fixed-frequency channels (1–6) and set the Transmitter and all Receivers to the same channel. Auto Mode (Channel 0) cannot be used with more than one Receiver connected to the same Transmitter.
CAPSULE COMPATIBILITY
The M5 handheld Transmitter is compatible with the following Microphone Heads:
Shure®: Beta58A, Beta87A, Beta87C, KSM8, KSM9, KSM9HS, PG58, SM58, SM86, SM87A
Electro-Voice®: RC2-767, RC2-967, RC2-PL80a, RC2-410, RC2-510, RE420-RC3, RE520-RC3
Heil Sound®: RC22, RC35
Telefunken®: M80WH, M81WH
Lectrosonics®: HHC, HHVMC
Lewitt®: W9
Austrian Audio®: OD505 WL1, OC707 WL1
-
