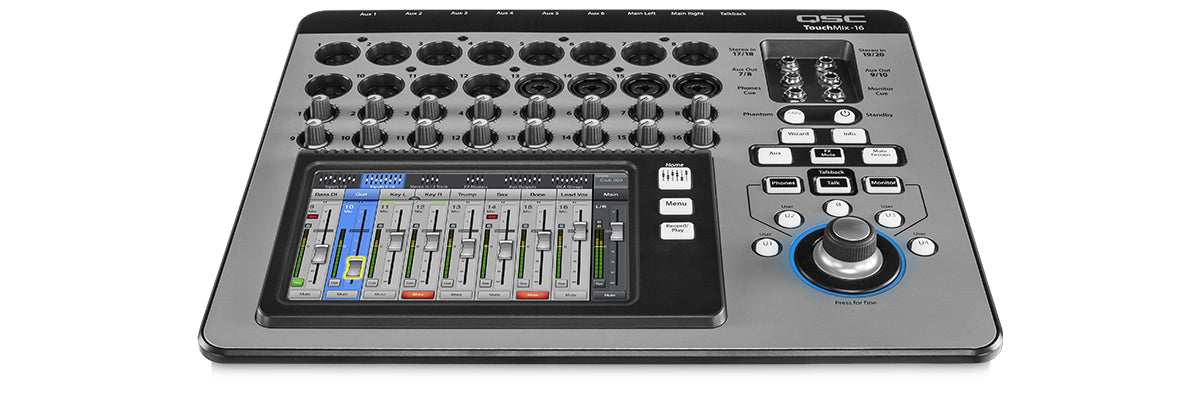

QSC TouchMix-16 22x12 Digital Mixer

Great results and easy to use

• Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
• Wizards assist with input gain adjustment and effects selection and routing.
• On board, multi-language Info system for instant access to the user manual in Chinese Mandarin, English, French, German, Russian and Spanish.*
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.

Superb sound quality

• Class-A microphone pre-amps
• 32-bit floating point processing
• 24-bit AD & DA convertors

Full featured input channels

• Four-band full parametric EQ
• Variable high-cut and low-cut filters
• Gate
• Compressor (with de-esser)
• Gate and compressor assignable Pre or Post EQ*
• User selectable auxiliary pick-off points*

Main and auxiliary outputs feature:

• 1/3-octave graphic EQ
• Limiter
• Delay
• Notch filters

20 total inputs

• 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
• Dedicated talkback mic input

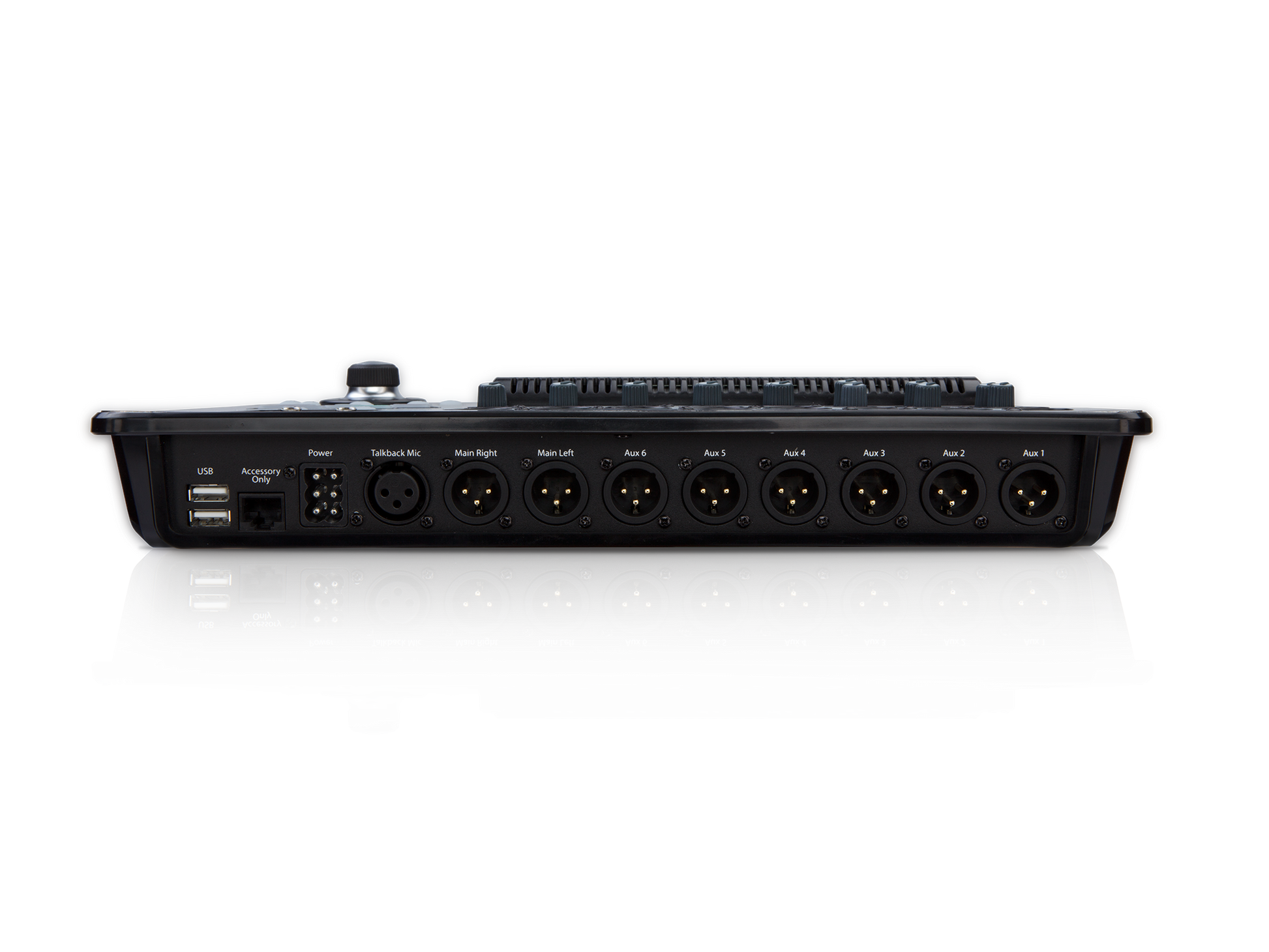

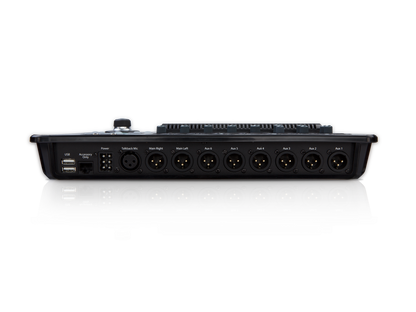

• Stereo Main L/R outputs (XLR)

8 monitor outputs

• 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
• Mono auxiliaries may be linked for stereo use.
• The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
• Mix on faders*
• Send from channels
• Aux overview of all aux mixes
• Auxiliary mixes may be assigned for Main L/R output for use as sub-groups.*

4 pro-quality stereo DSP effects
Choose from:

• Two types of reverb
• Mono delay
• Stereo delay
• Chorus
• Pitch-change
• One Pitch Correct processor – assignable to any input channel.

Remote Control

• Monitor control via iPhone/iPod Touch App.*
• Multiple Wi-Fi connectivity options.*
• Individual devices may be given permissions to access one or more functions.*
• Support for MIDI-over-USB footswitches.*

Features

• Eight DCA and eight mute groups.
• Assign / Un-assign Input to Main Mix*
• Programmable User-Buttons.*
• Save your own channel presets and complete mixer scenes to internal memory or USB device.
• Capturing live performance to multi-track has never been easier. Record 14 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
• Security Lockout Modes

*Requires 2.1 or higher firmware
