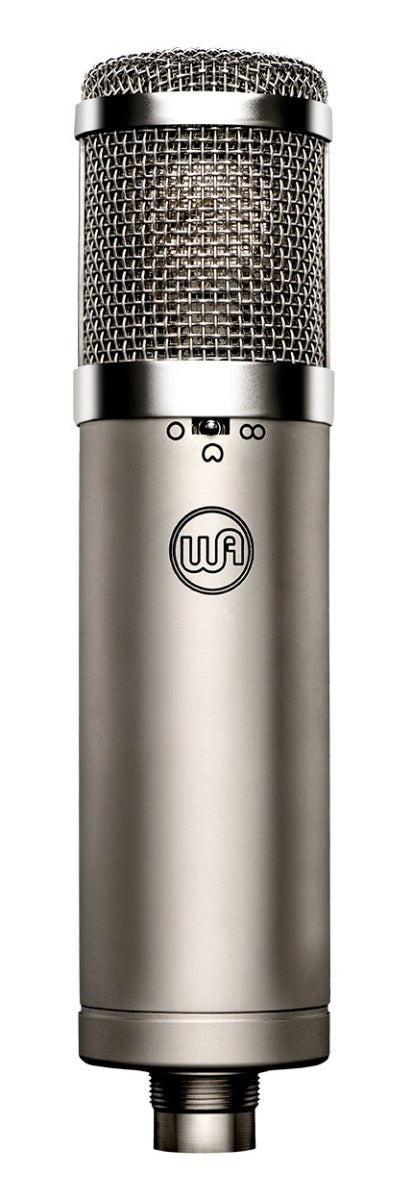

Warm Audio WA-47JR Transfomerless FET Condenser Microphone

The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.

Warm Audio WA-47jr Large-diaphragm FET Condenser Microphone Features:

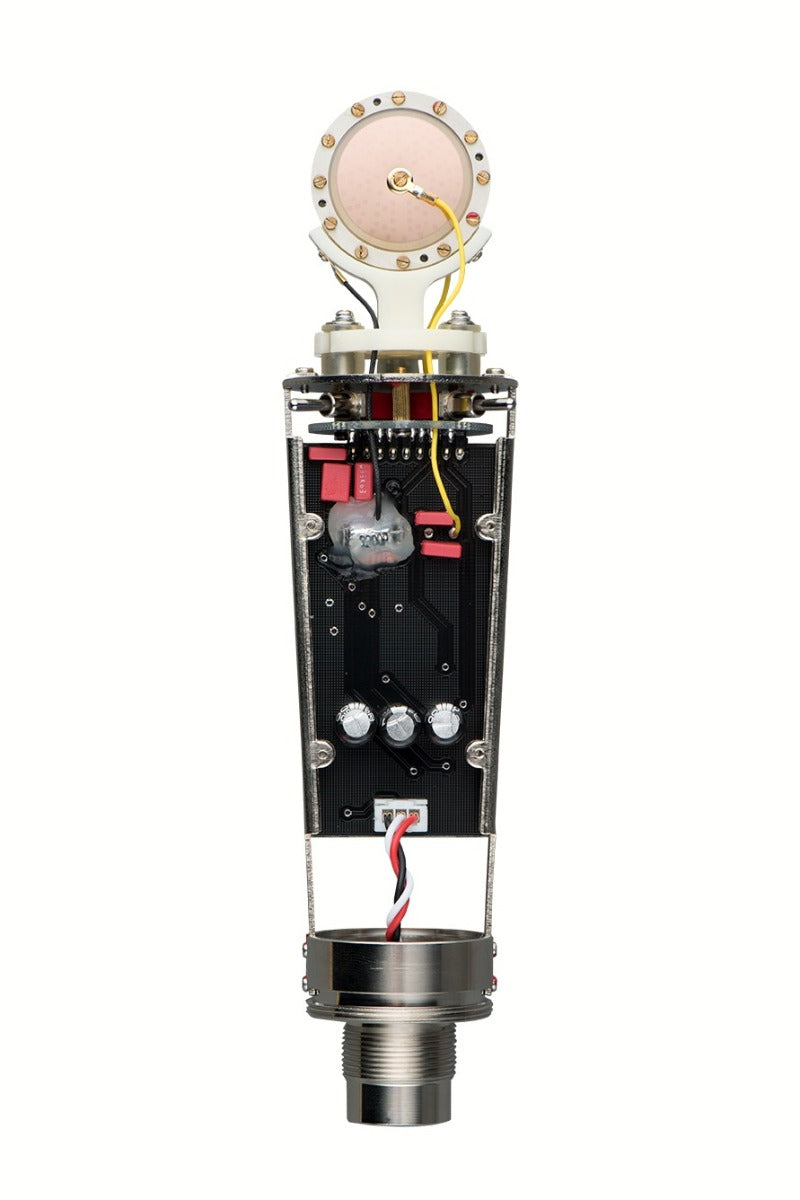

• Fully discrete, transformerless signal path
• Custom ’47-style k47 34mm gold-sputtered, dual-diaphragm, single–back plate, 6 micron Mylar capsule
• Toshiba FETs, Wima film capacitors, Panasonic electrolytic capacitors
• Cardioid, figure-8, and omnidirectional polar patterns
• 10dB pad; 70Hz highpass filter
• Self-noise: 9dBA
• Dynamic range: 138dBA
• Maximum SPL: 147/157dB (at 1kHz, 1 Kohm, 0.5% THD, 0/-10dB)
• Frequency range: 20Hz–20kHz
• Sensitivity: 10mV/Pa or -40dB
• Output impedance: 100 ohms
• Rated load impedance: ≥1 Kohm
• Maximum output: 16dBu at 1kHz, 1 Kohm, 0.5% THD
• S/N ratio: 85dBA (IEC651)
• Equivalent noise: 9dBA (IEC651)
• Dynamic range: 138dBA (IEC651)
• 48-volt phantom powered
• 3-pin gold-plated XLR connector

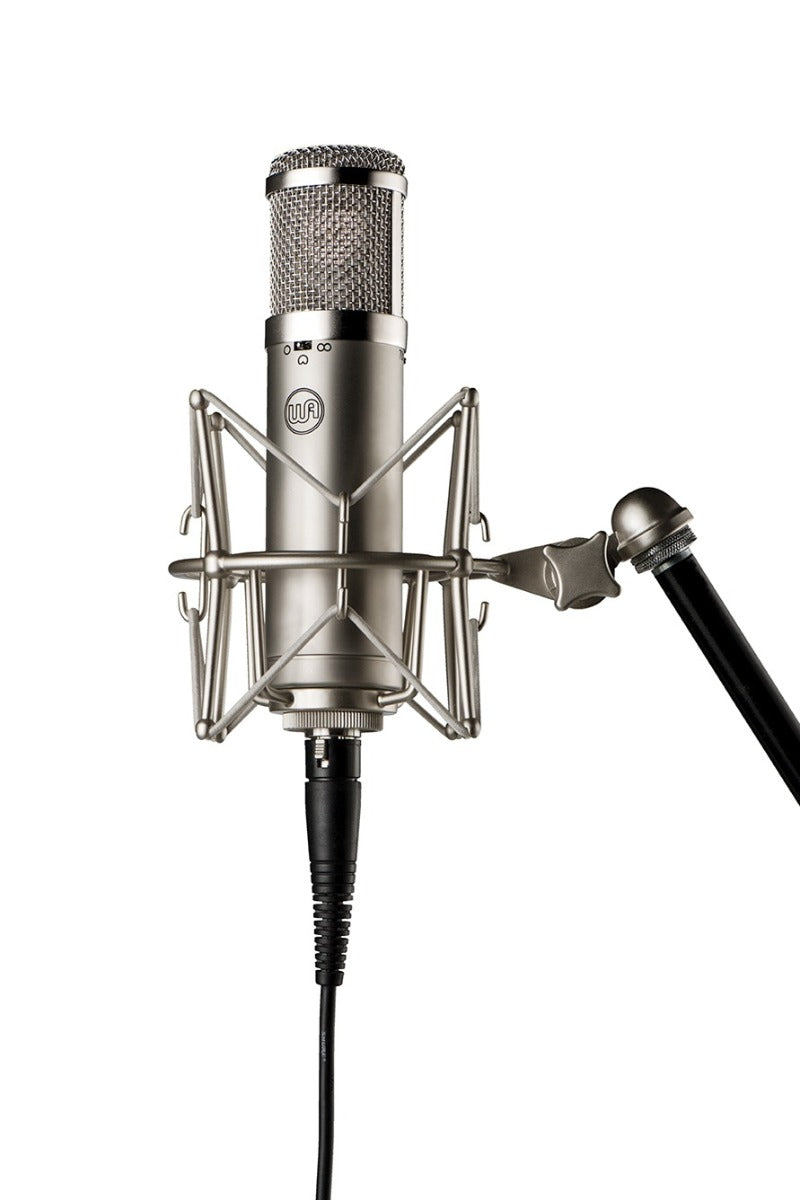

• Includes shockmount, hardmount, and zipper storage pouch
