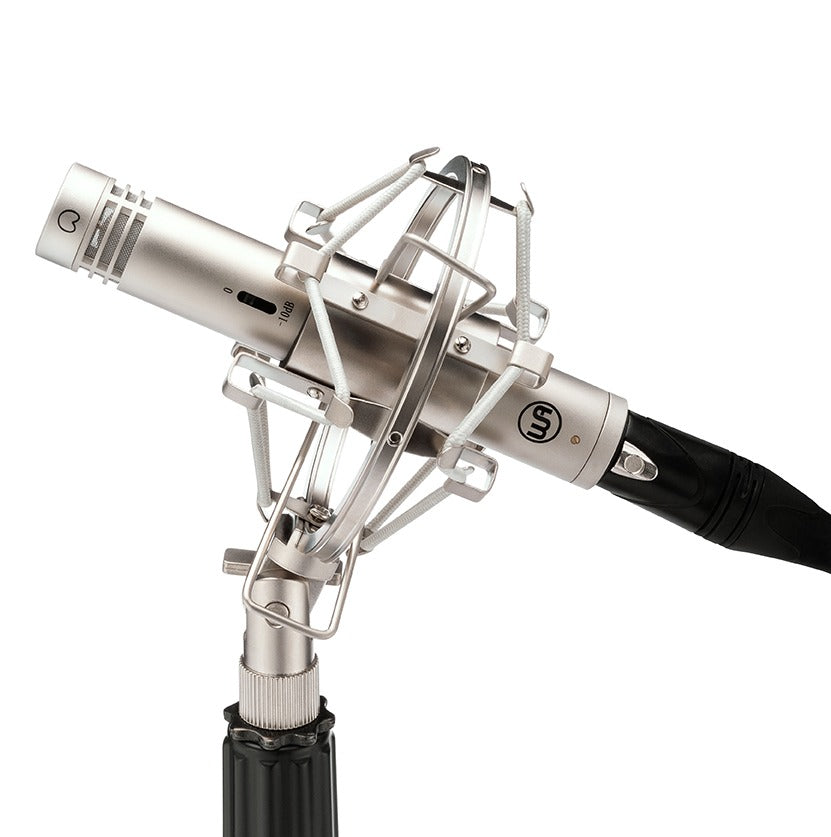

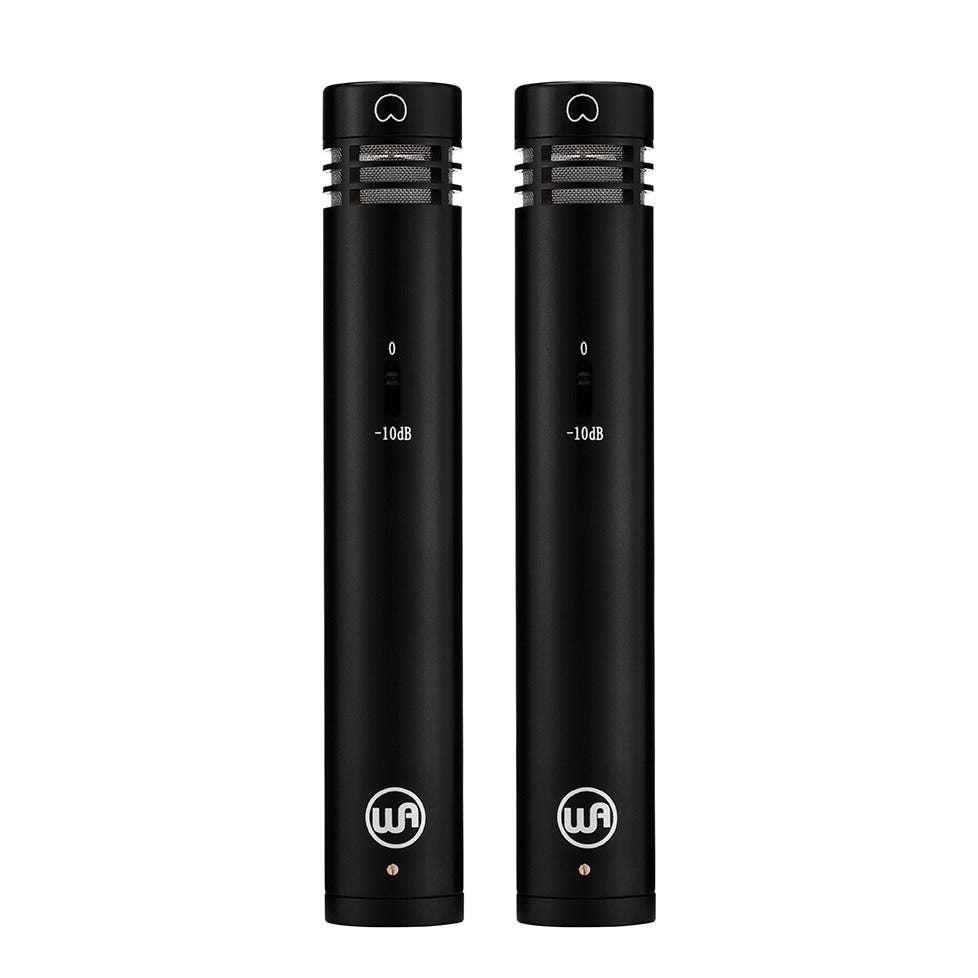

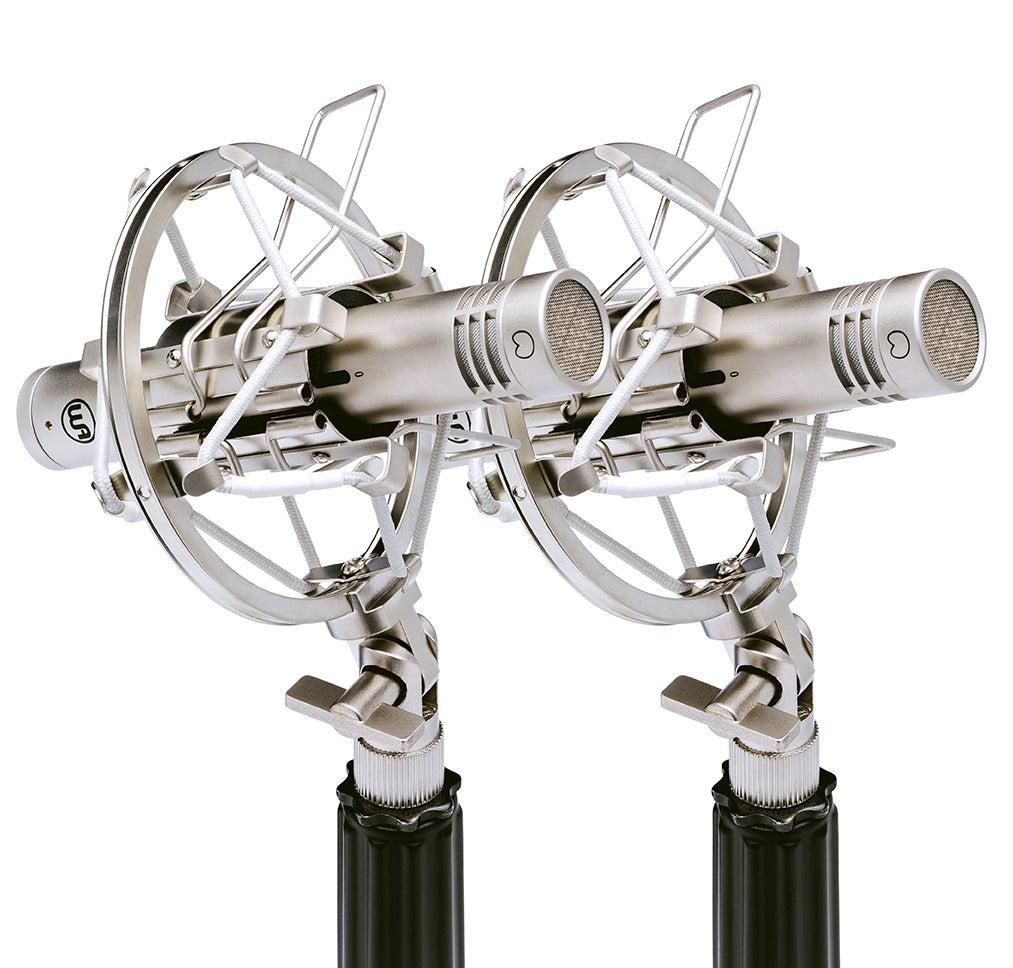

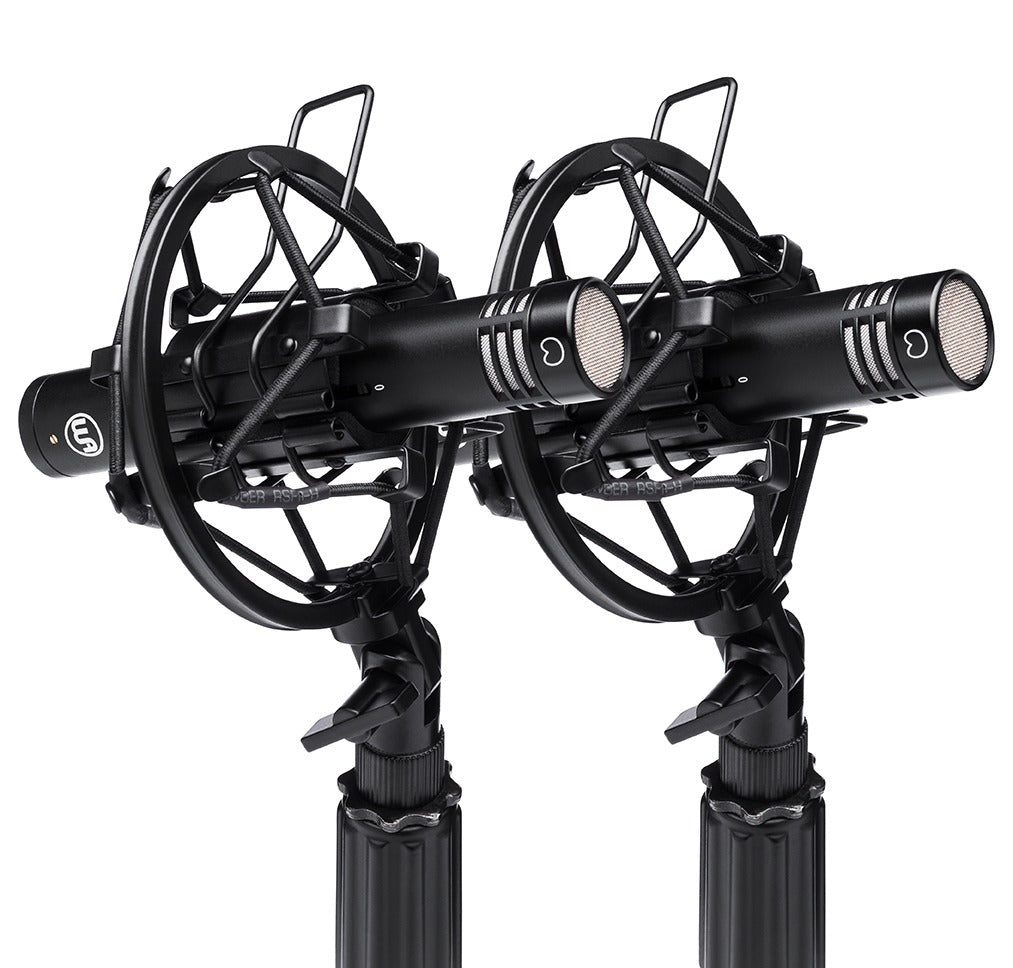

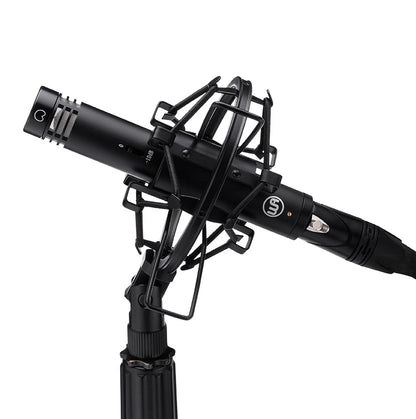

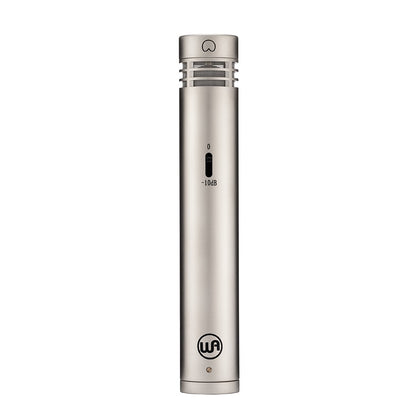

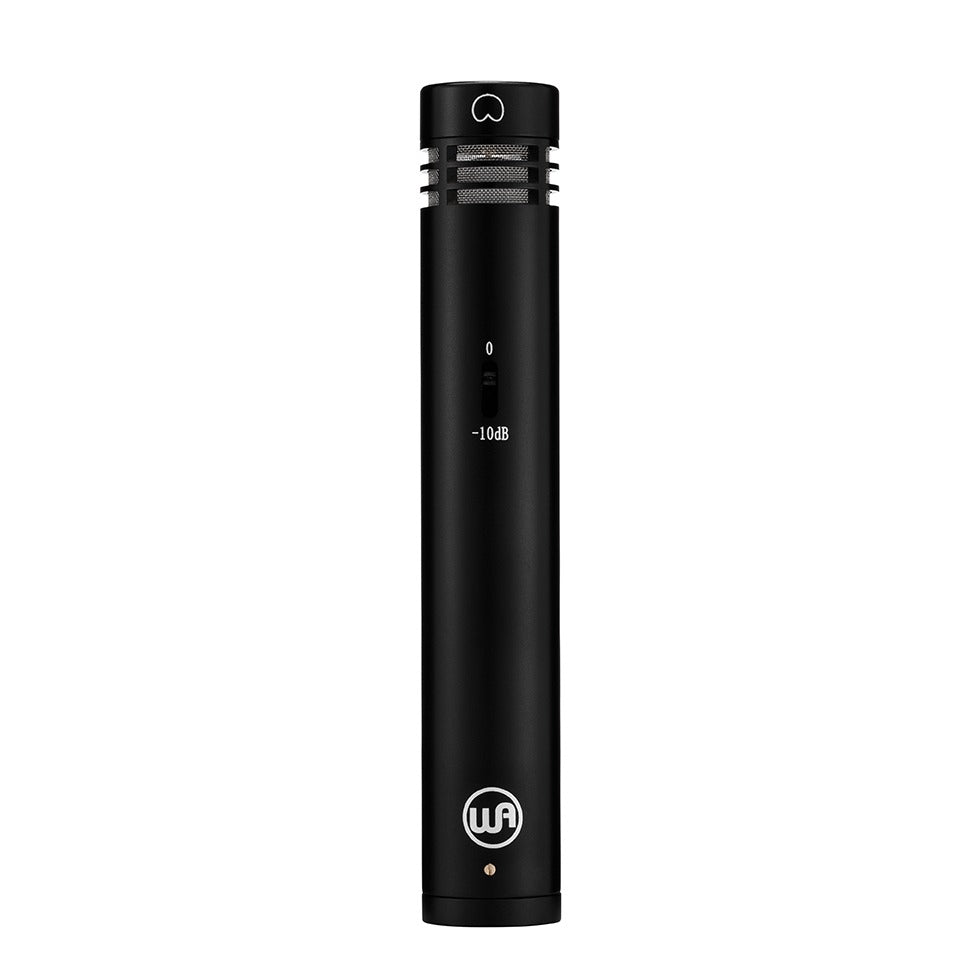

The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.
Warm Audio WA-84 Small-diaphragm Condenser Microphone Features:
- Cardioid polar pattern
- Fully discrete signal path
- Vintage reproduction capsule
- CineMag USA Transformer
- 48V phantom powered
- Frequency Range: 20Hz–20kHz
- Sensitivity: -39dB or 11mV/Pa @ 1kHz
- Output Impedance: 200Ω
- Rated Load Impedance: ≥1kΩ
- Switchable Pad: -10dB
- Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
- S/N Ratio: 78dBA (IEC651)
- Equivalent noise: 16dBA (IEC651)
- Dynamic range: 107dBA (IEC651)
- Connector: 3-pin gold-plated XLR

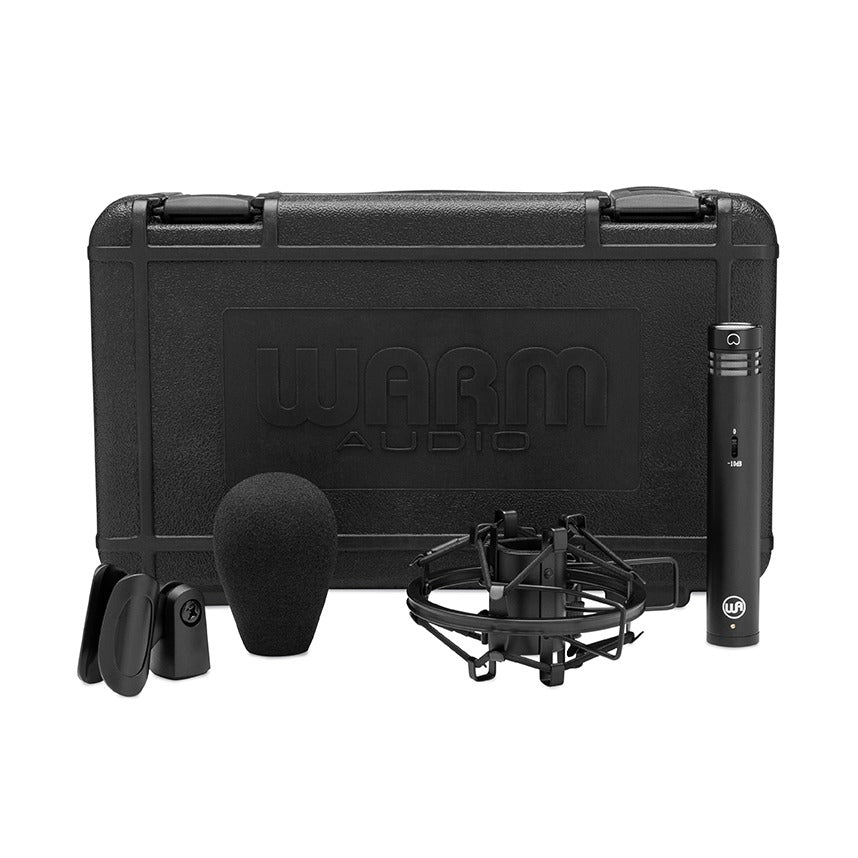

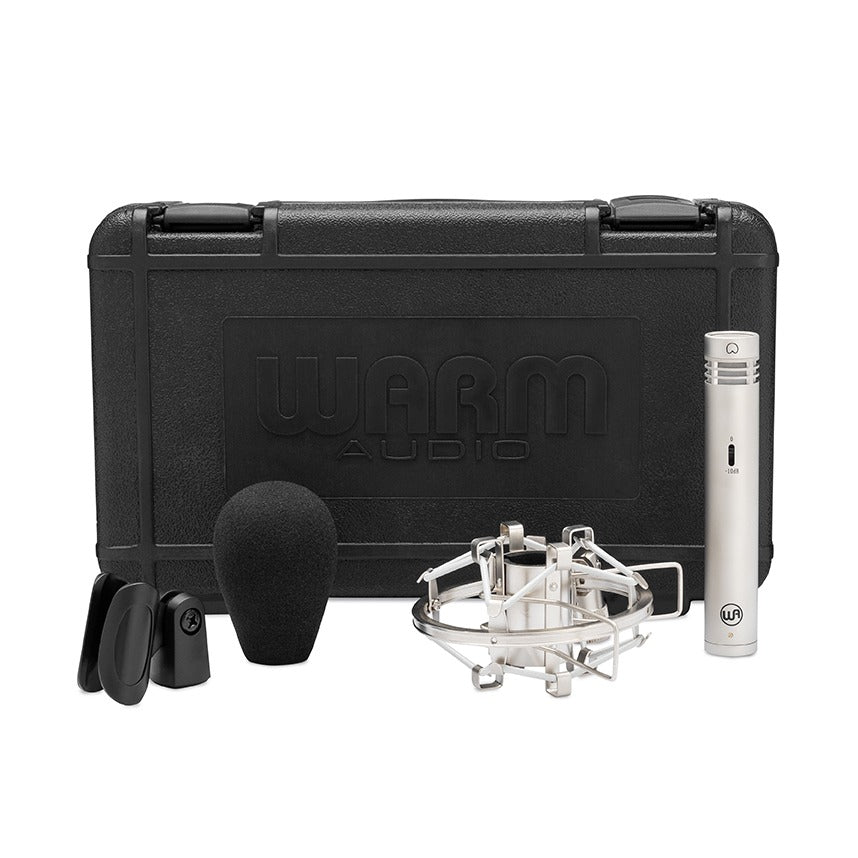

- Includes microphone, cardioid capsule, shockmount, mic clip, windscreen, carrying case
