M5 is a compact and easy-to-use wireless microphone system designed for stage performance, hosting, teaching, live streaming and portable public address applications. It features one auto-sync channel and six fixed channels (Channels 1–6) for flexible use in single or multi-system setups.

CHANNEL OPTIONS

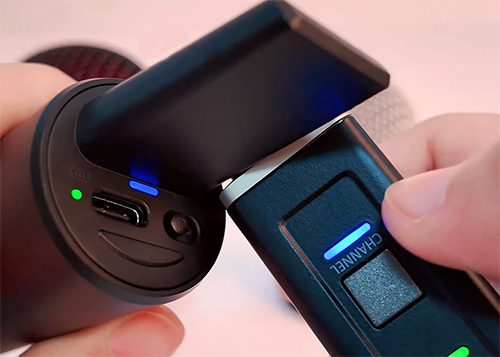

M5 offers seven channel options: Channel 0 (Auto Mode) and six fixed-frequency channels (1-6). Your set will connect in Auto Mode by default—but you can use any fixed-frequency channel by setting the Transmitter and Receiver to the same channel (1-6). Channel 0 automatically scans the local RF environment and selects available frequencies to help maintain a stable wireless connection. For typical single-set use, Channel 0 is recommended.

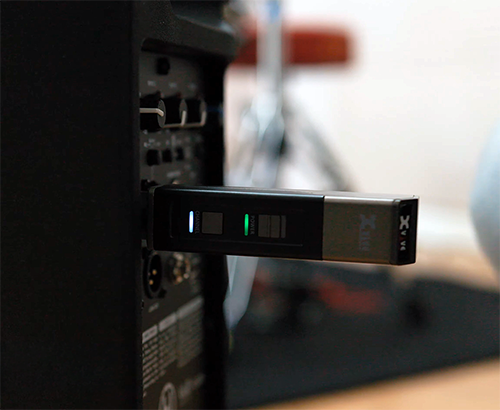

CONNECTING THE RECEIVER

After wirelessly linking the units, connect the M5 Receiver to your audio device. Plug the Receiver directly into an XLR mic input on your device (mixer, powered speaker, audio interface). This is the simplest and most common setup. Note that M5 features a built-in +6dB boost, which means that it will require less gain on your mixer channel than most standard microphones.

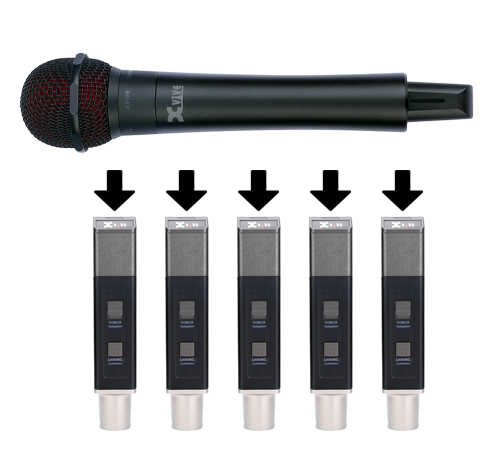

ONE MICROPHONE, MULTIPLE RECEIVERS

To send a signal from one Microphone/Transmitter to multiple Receivers, select one of the fixed-frequency channels (1–6) and set the Transmitter and all Receivers to the same channel. Auto Mode (Channel 0) cannot be used with more than one Receiver connected to the same Transmitter.
